Hovercraft Hydrofoil

ACV Benefits
Delivery of goods and people to inaccessible due to lack of roads and deep water.
Opening up unexpected opportunities for people living in remote areas.
Cheaper and easier shipping for mining companies.
Almost every year, large areas of Australia are flooded during floods.
Often, due to weather conditions, helicopters cannot come to the rescue, hovercraft can.
For hovercraft, swampy, saturated with flood water and shallow water are easily accessible.
Fast delivery of rescuers to flooded areas, a sharp decrease in the cost of rescue operations.
The ships equipped with diesel engines have good efficiency and are inexpensive to operate and repair.
Fast and comfortable delivery of passengers to the islands and tourist routes.
Hulls made with marine aluminum alloy and plastic have a long service life and are easily repaired in case of damage.

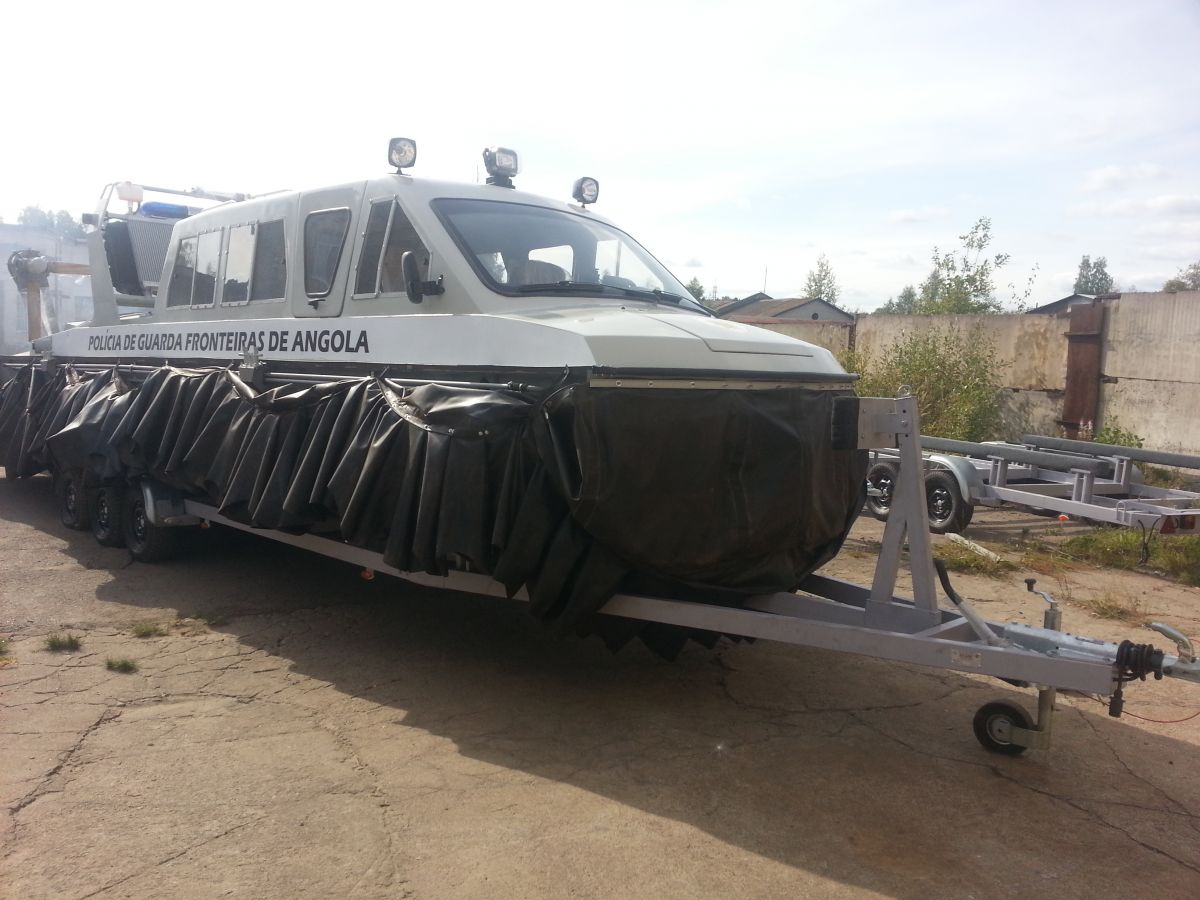

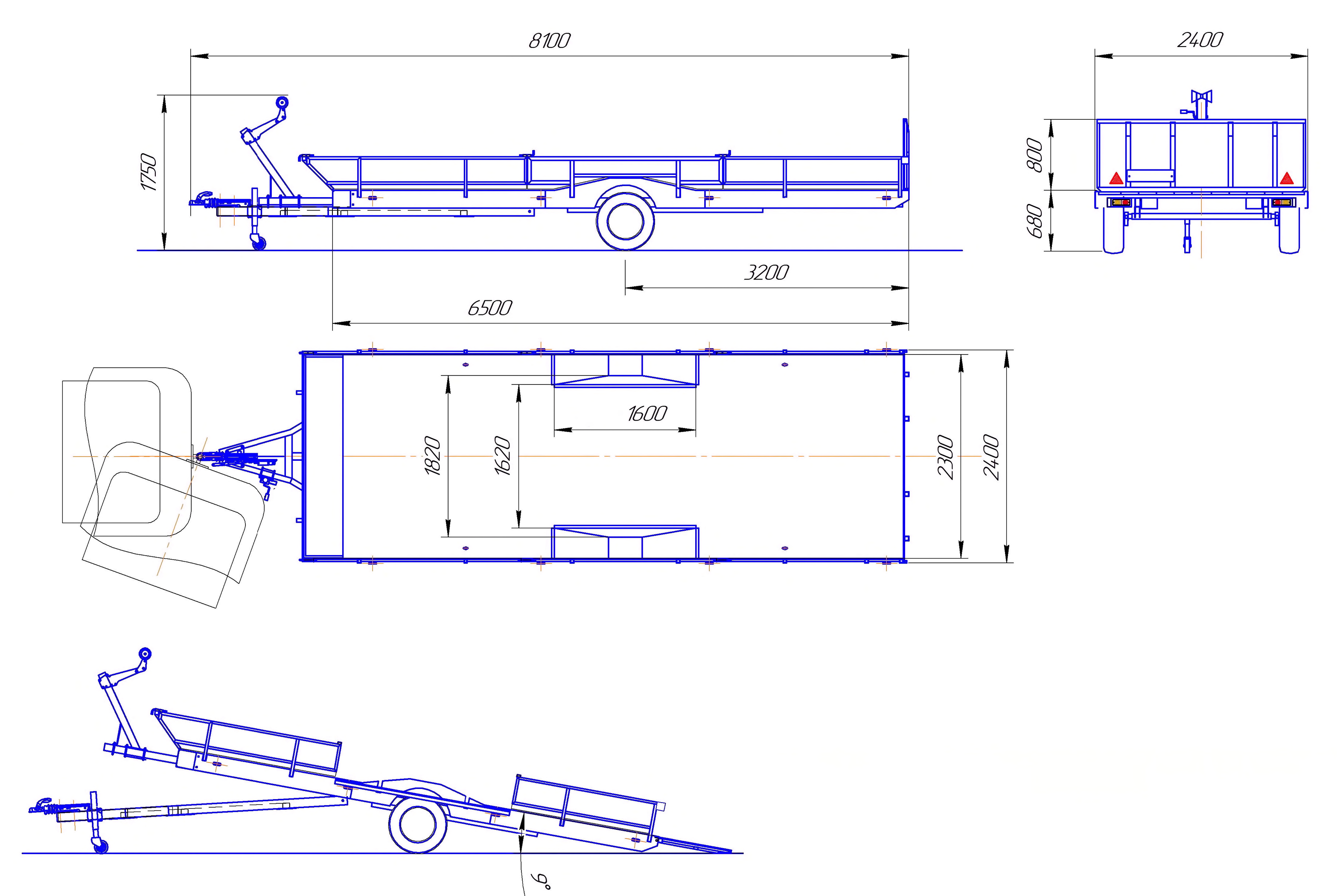

All vessels can be transported on a trailer if necessary.
We are have many years of experience in production and operation.

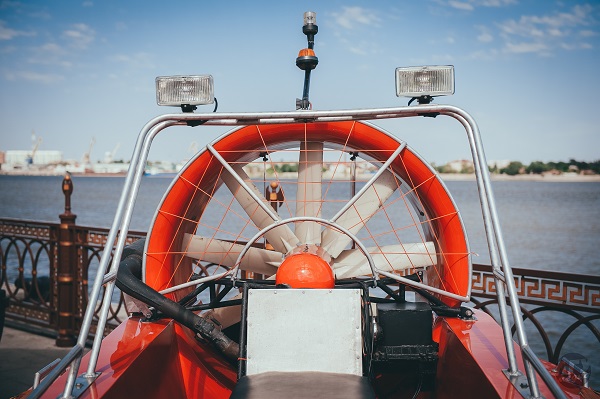

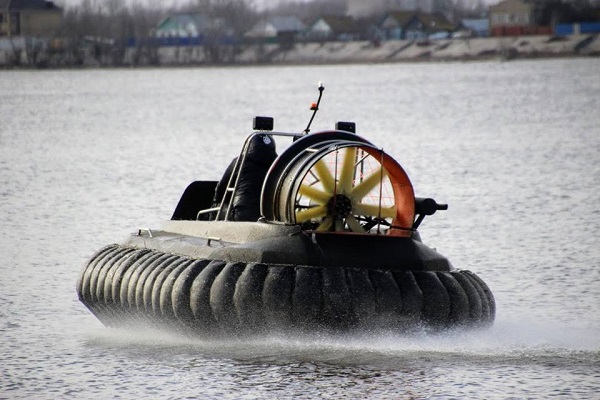

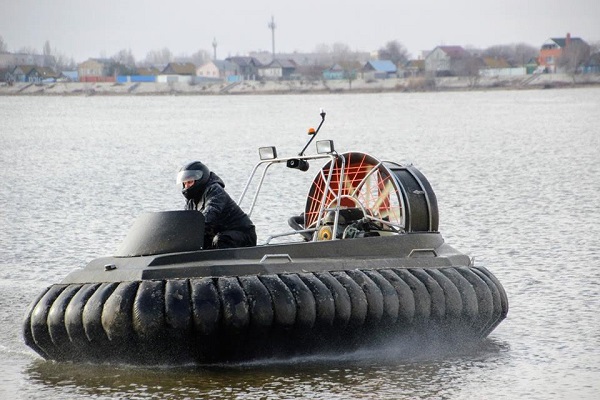

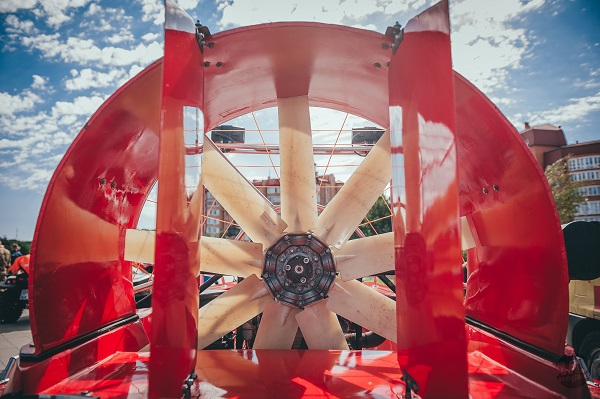

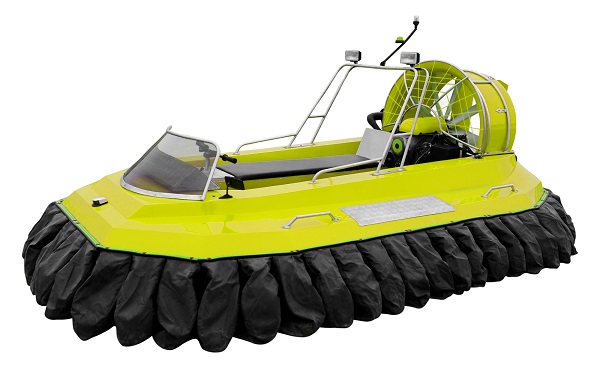

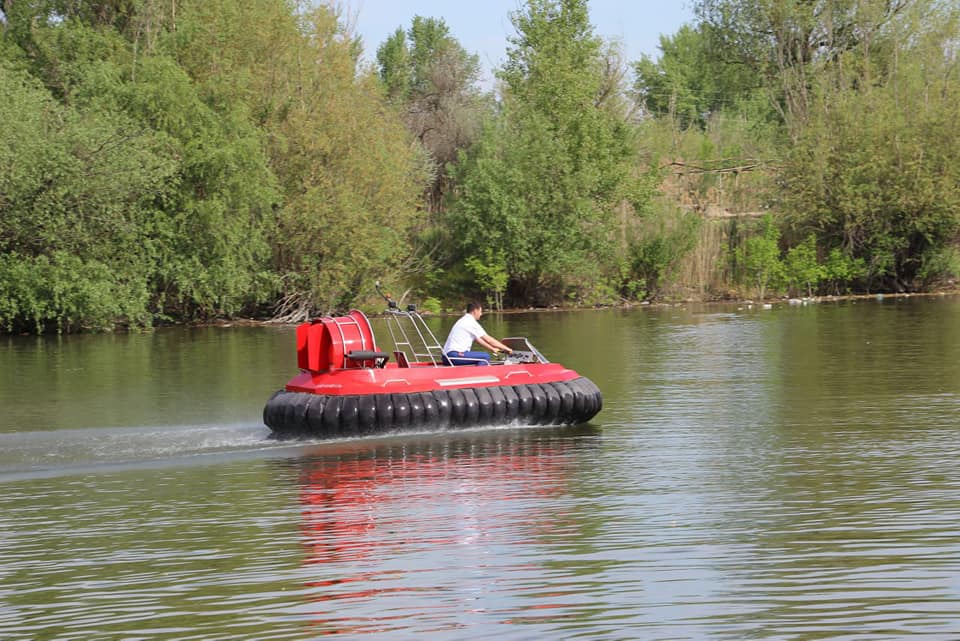

3 seats Hovercraft Astra-420

Carrying capacity: Pilot + 2 passengers / Pilot + 250 kg of a cargo. The maximum available weight on a board is a 300 kg plus a pilot.

Specifications:

Length – 4470 mm on the pillow, 4200 mm not on the pillow.

Width – 2450 mm on the pillow, 2200 mm not on the pillow.

Height – 1850 mm on the pillow, 1570 mm not on the pillow.

Weight – 180 kg +/- 10 kg (as standard), 200 kg +/- 10 kg (with all options).

Noise level 83 dB (A), SAE Standard L92a in a radius of 10 m.

Tank’s capacity is 20 liters (one tank). The second tank is an option.

Fuel consumption – 6-9 l/h

Recommended fuel unleaded A-92 petrol, the combustible mixture is an A-92 gasoline and two-stroke oil in relation to 45:1.

Engine options RMZ Р550/551(50/60ph) or Hirth.

Limitations:

· Wind – 10-15 mps.

· Wave height – up to 600 mm or 3 points on the WMO scale.

· Operating temperature – from -35°С to + 40°С.

· The overcome bias – to 12 degrees without acceleration with a payload of 250 kg. With slight acceleration – to 45

degrees.Price from US$13000.

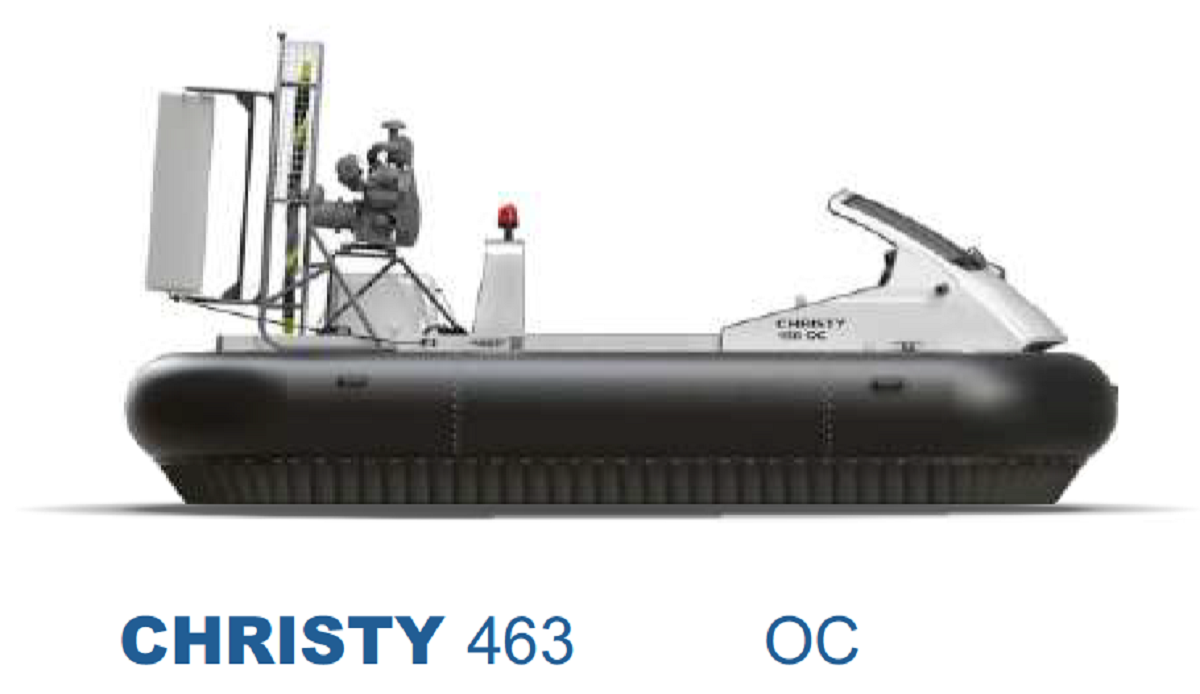

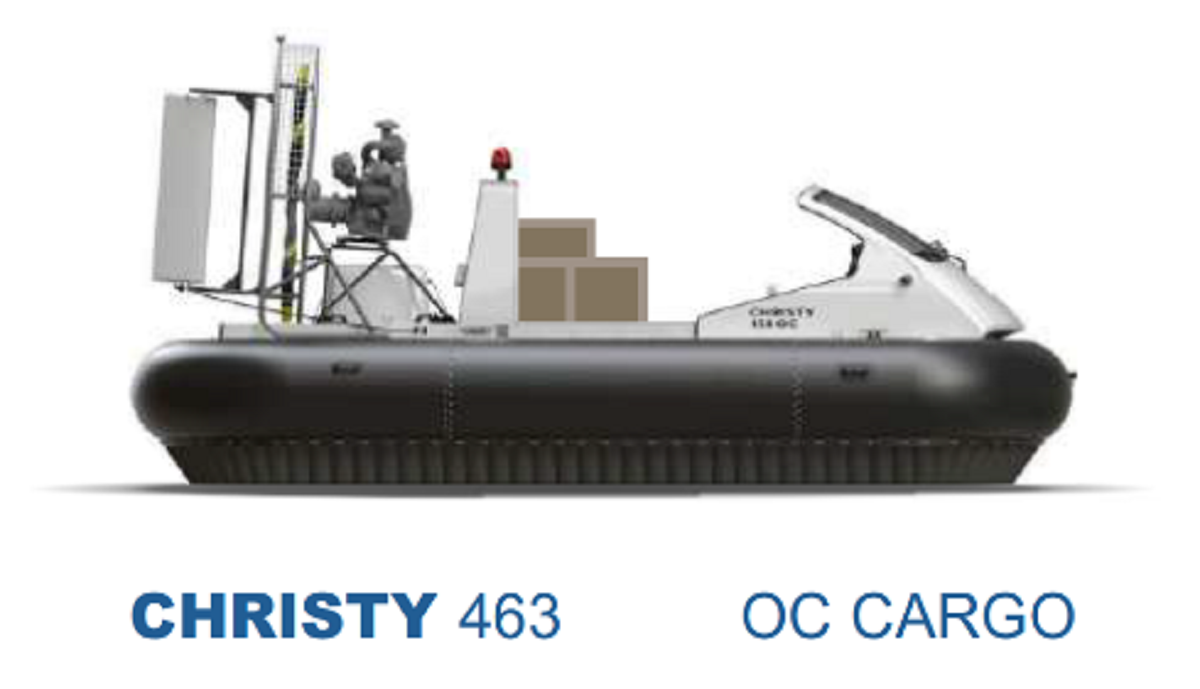

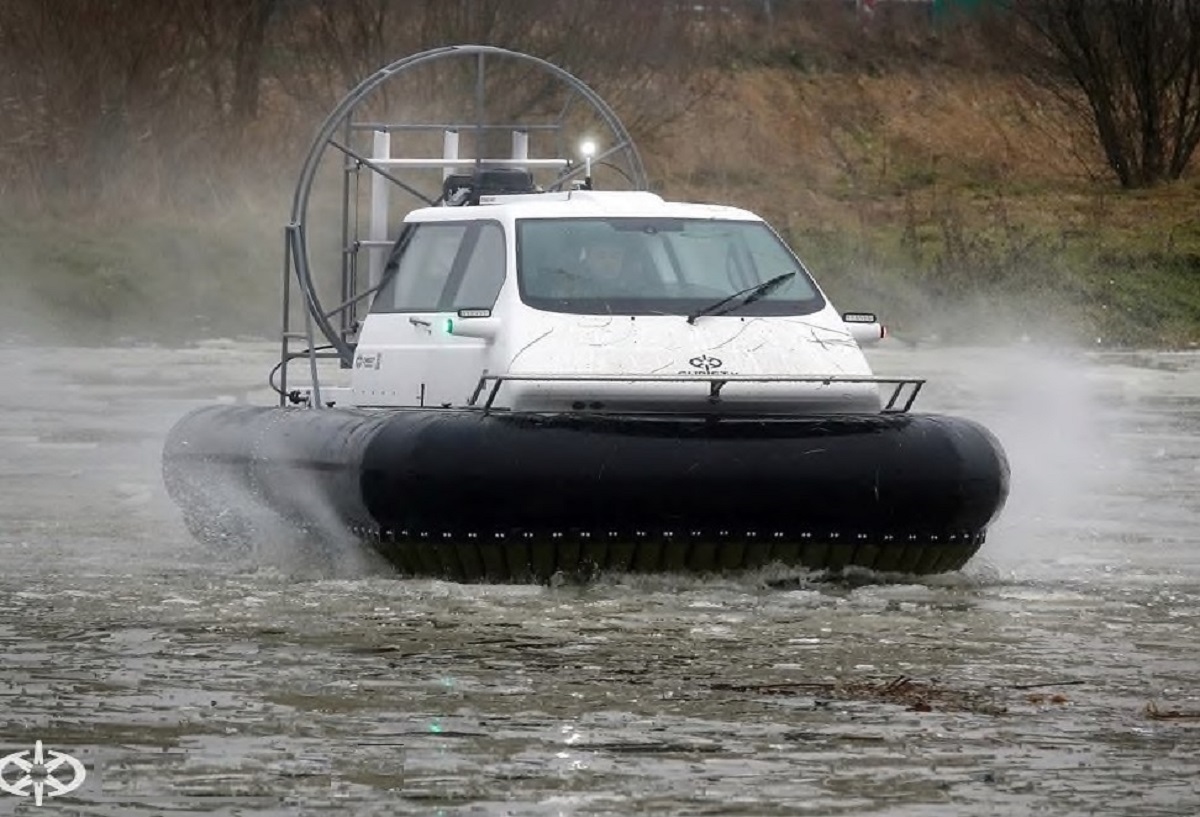

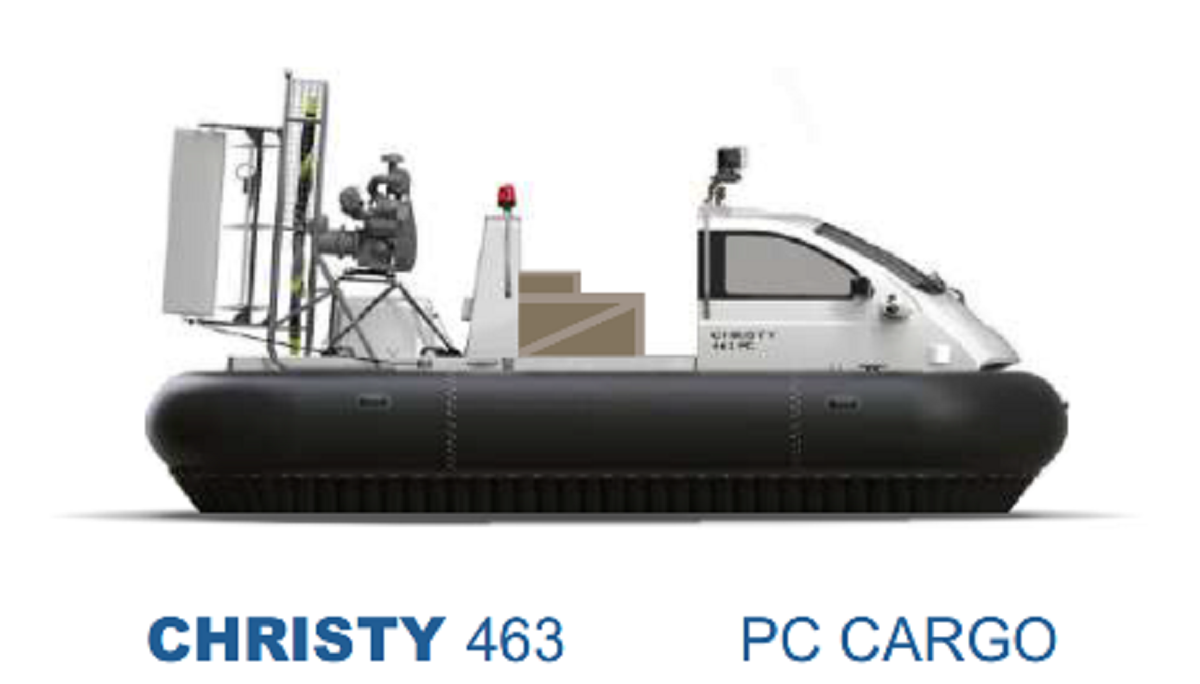

4 seats hovercraft Christy

Payload, kg 325

Pax 4

Dimensions not on the cushion (L.W.H.), mm 5150 × 2200 × 2300

Dimensions on the cushion, mm (L.W.H.) 5700 × 3100 × 2650

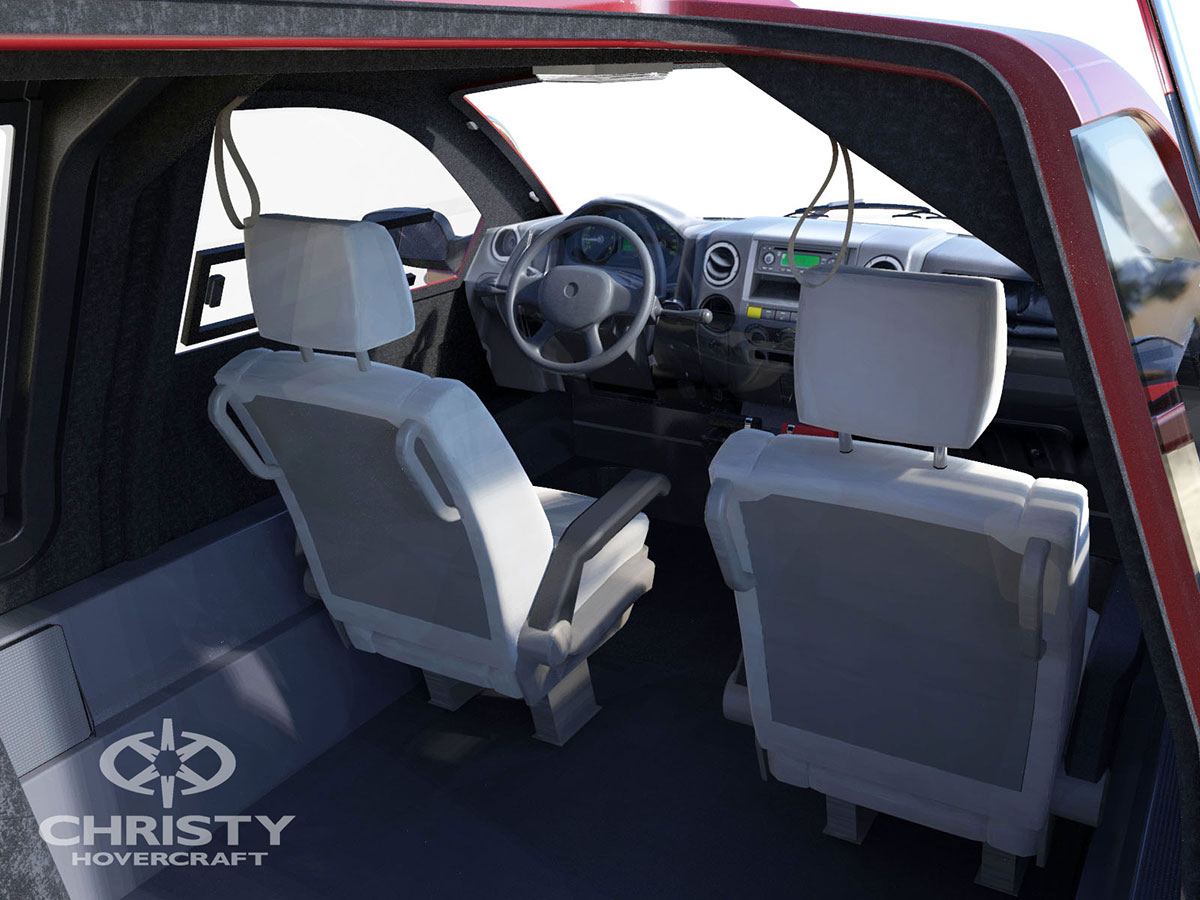

Dimensions inside the cabin, mm 2200 × 1550 × 1300

Weight, kg 400-450

Clearance, mm 400-450

Height overcome obstacles¸ mm 300-600

Wave, m 0,5

Wind, m/c 13, gusts up to 15

Cruising speed, km/h 40-50

Max speed, km/h up to 90

Slope overcome from a standstill/at full speed, deg 15/40

Engine(s) kW

Thrust 37

Lift 23

Type Petrol

Fuel consumption, l/h from 8 to 15

The main tank fuel capacity, l 40

Hull The housing is completely made of composite materials. Individual elements in the form of sandwich panels made of fiberglass and polyurethane foam with an outer finishing layer to ensure 100% positive buoyancy. Not subject to corrosion and itching. Easy to repair.

Cushion Bunk (upper tier - inflated balloon tapered from front to back of the higher sections of the front for improved wave, the lower tier - independent segments). All segments are independent and easily replaced in the field.

The structure of the cushion Balloon and the segments are made of nylon impregnated with urethane. The segments attached to the balloon with polyamide bolts and nuts.

Buoyancy Bottom based on sandwich panels of polyurethane foam and fiberglass provides 100% buoyancy. Even if the interior completely fill with water, ACV will remain afloat.

Traction system Traction (marching) three-blade propeller aircraft - 1600mm in diameter made with composite, Lifting fan - 9-blade propeller axial diameter of 710 mm

Transmission Factory-built gear reducer aircraft, made in Italy

Managing Exchange With two vertical rudders

Pitch control With two horizontal rudders fitted behind the fan ring

Navigation Devices All vessels are equipped with a full range of electrical equipment. Provided a large number of options, including air conditioning, navigation equipment, multimedia equipment, rescue equipment, special equipment for hunting and fishing

Electrical Engines equipped with: march - a powerful generator; Discharge - magdino

Bailing Electric bilge pump, extra - hand pump

Firefighting Portable carbon dioxide fire extinguisher

Navigation and communication Prepared a place for the marine compass, GPS-navigator, card plotter and radio. FM-radio and CD-player.

Additional options (for a fee) Custom colors, Guard railing, Front side windows with small, sliding, ventilating windows, Light with remote control, Electric winch (synthetic rope).

Shipped in 20-f container.

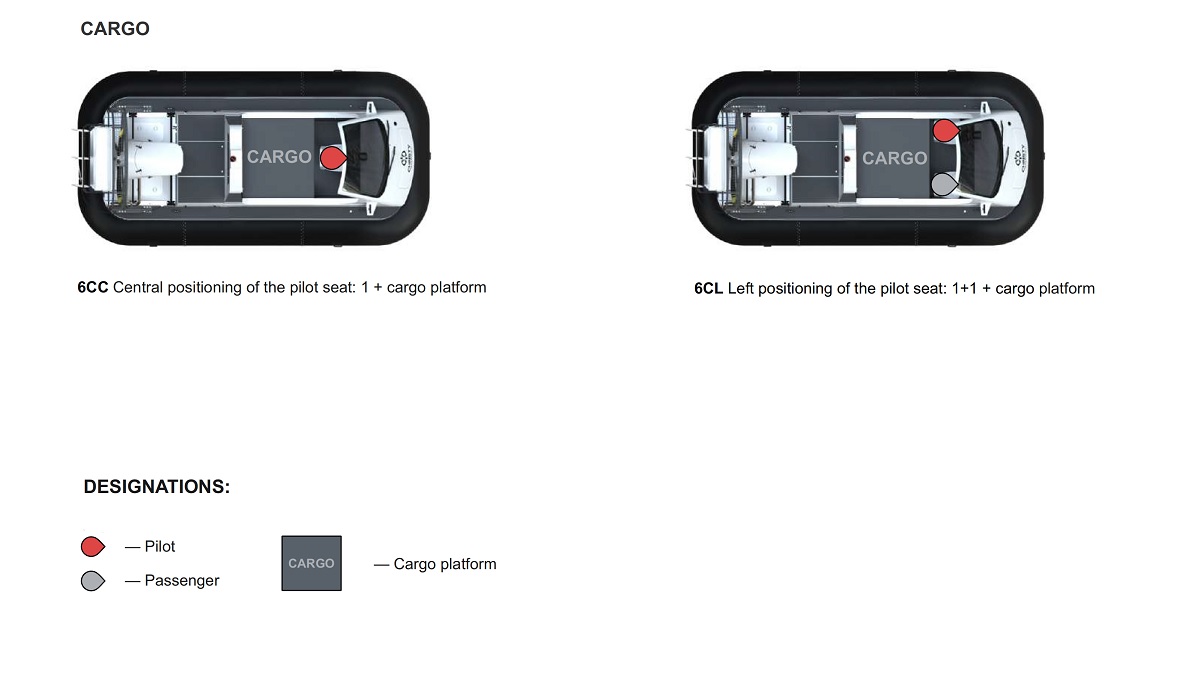

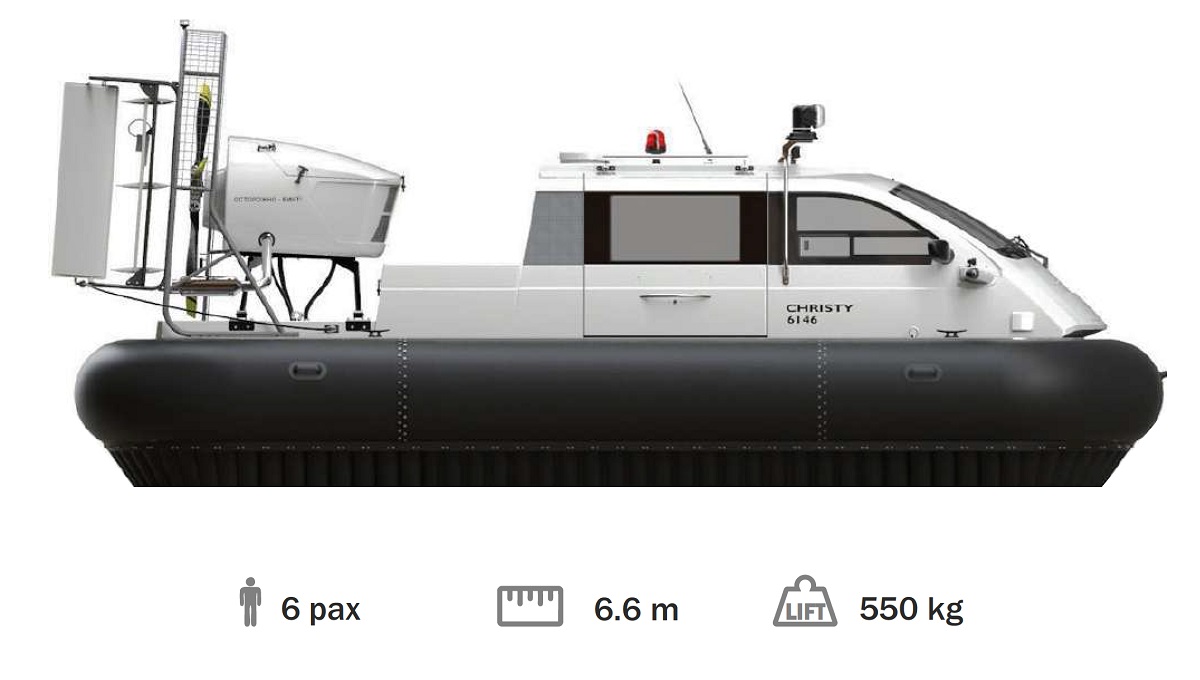

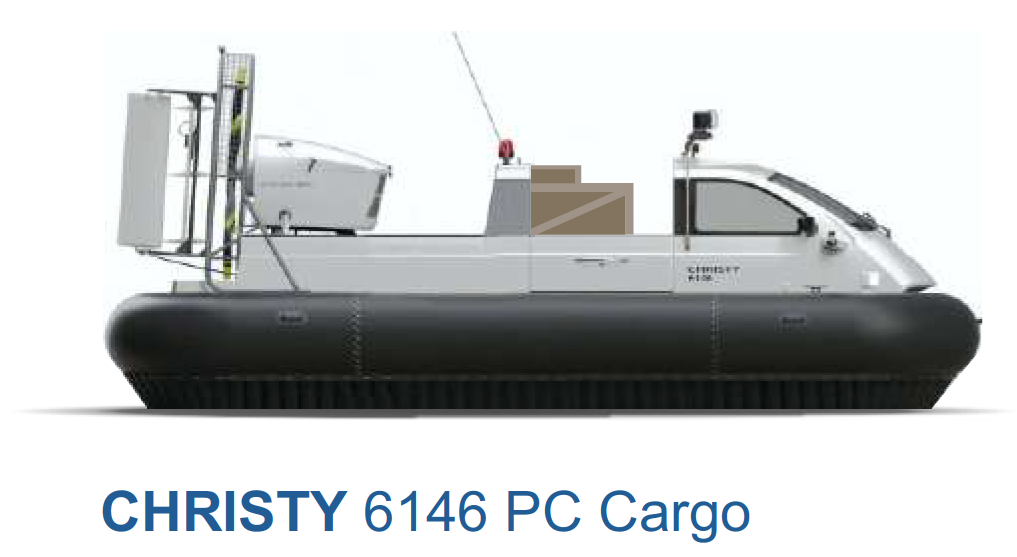

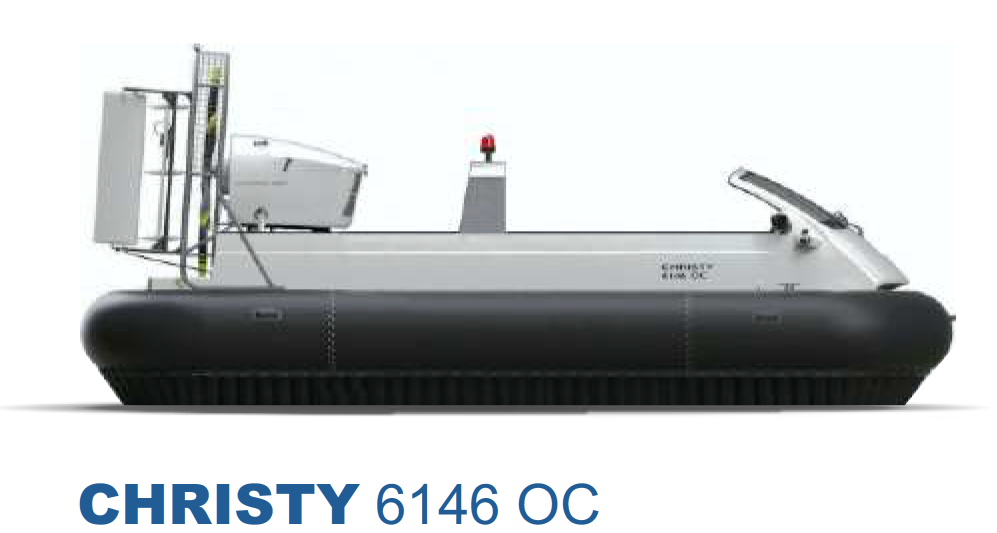

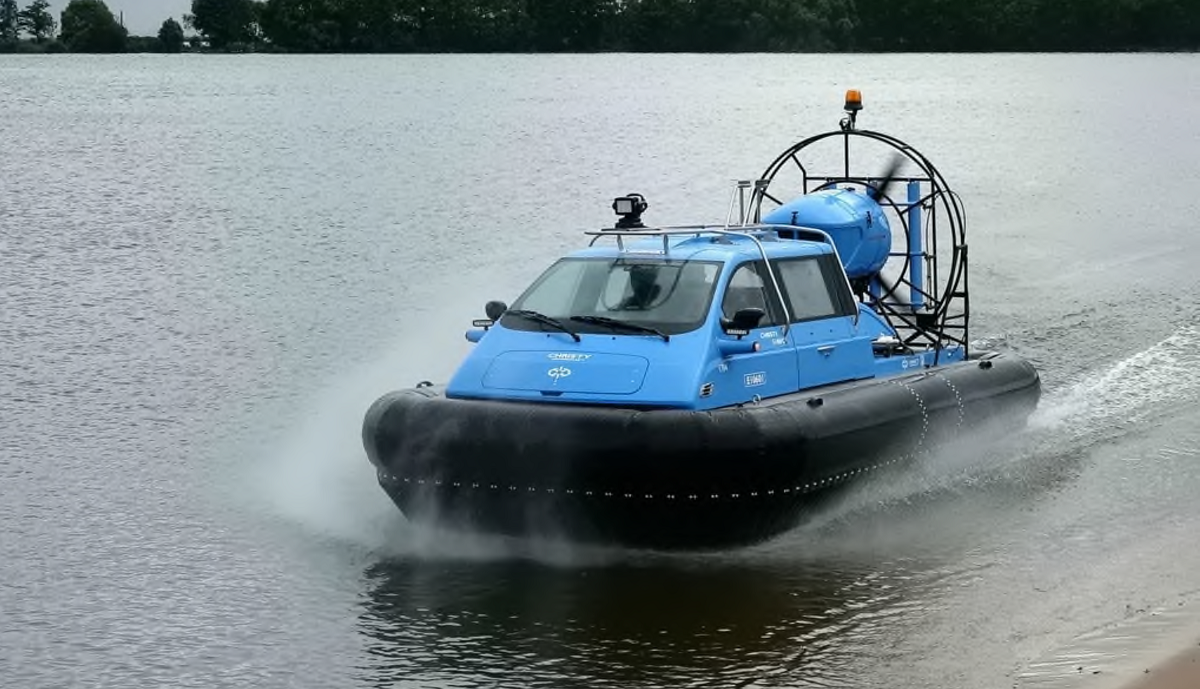

6 seats hovercraft Christy

Payload, kg 550

Pax 6

Dimensions not on the cushion (L.W.H.), mm 5900×2200×2300

Dimensions on the cushion, mm (L.W.H.) 6600×3100×2750

Weight, kg 850-900

Clearance, mm 400-450

Height overcome obstacles¸ mm 400-450

Wave, m 0,5

Wind, m/c 13, gusts up to 15

Cruising speed, km/h 50-60

Max speed, km/h 100

Slope overcome from a standstill/at fulll speed, deg 15/40

Engine(s) hp

Thurst 120

Lift 26

Type Petrol

Fuel consumption, l/h 20-25

The main tank fuel capacity, l 80

Cushion Bunk (upper tier - inflated balloon is tapered from front to back of the higher sections of the front for improved wave, the lower tier - independent segments). All segments are independent and easily replaced in the field.

The structure of the cushion Balloon and the segments are made of nylon impregnated with urethane. The segments attached to the balloon with polyamide bolts and nuts.

Buoyancy Bottom based on sandwich panels of polyurethane foam and fiberglass provides 100% buoyancy. Even if the interior completely fill with water, ACV will remain afloat.

Traction system Traction (marching) three-blade propeller aircraft - 1600mm in diameter made with c omposite, Lifting fan - 9-blade propeller axial diameter of 710 mm

Transmission Factory-built gear reducer aircraft, made in Italy

Managing Exchange With two vertical rudders

Pitch control With two horizontal rudders fitted behind the fan ring

Electrical Engines equipped with: march - a powerful generator; Discharge - magdino

Bailing Electric bilge pump, extra - hand pump

Firefighting Portable carbon dioxide fire extinguisher

Navigation and communication Prepared a place for the marine compass, GPS-navigator, card plotter and radio. FM-radio and CD-player.

Additional options (for a fee) Custom colors, Guard railing, Front side windows with small, sliding, ventilating windows, Light with remote control, Electric winch (synthetic rope).

Shipped in 20-f container.

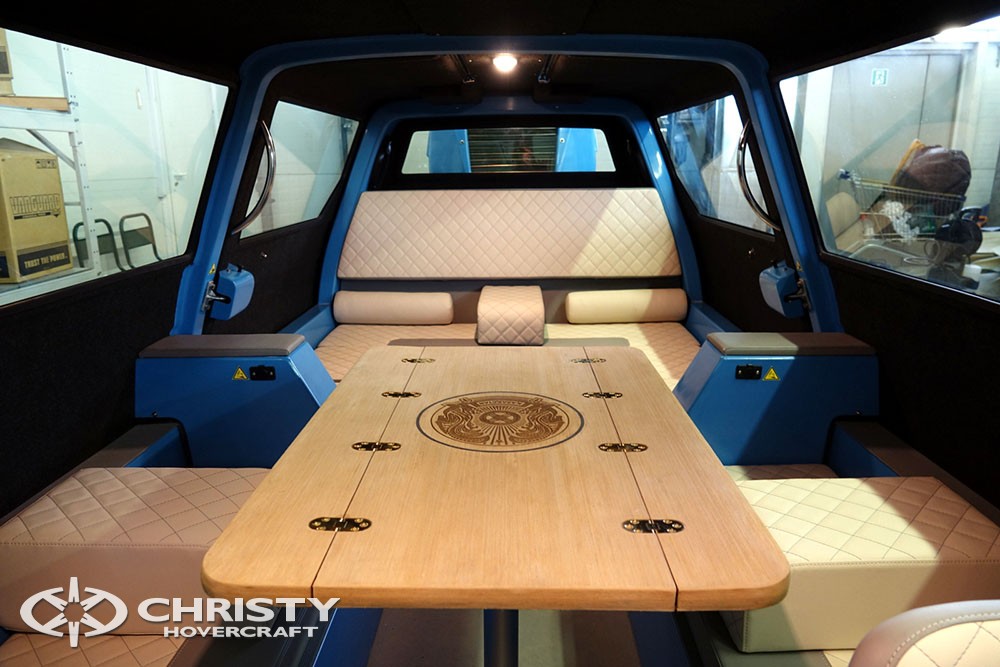

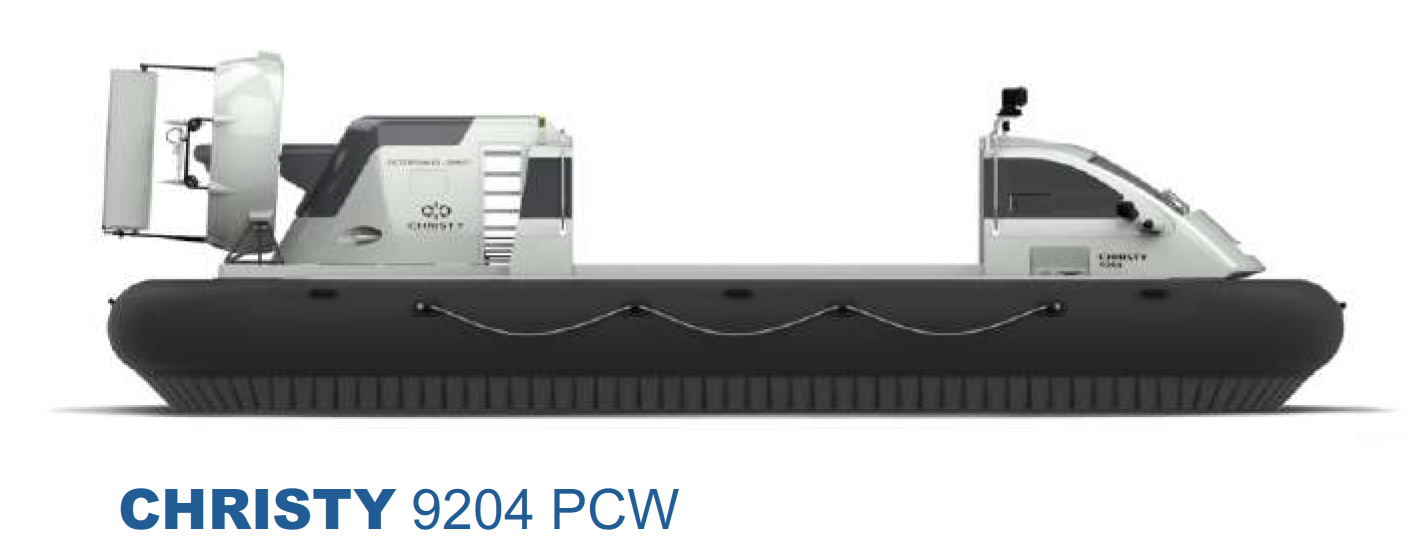

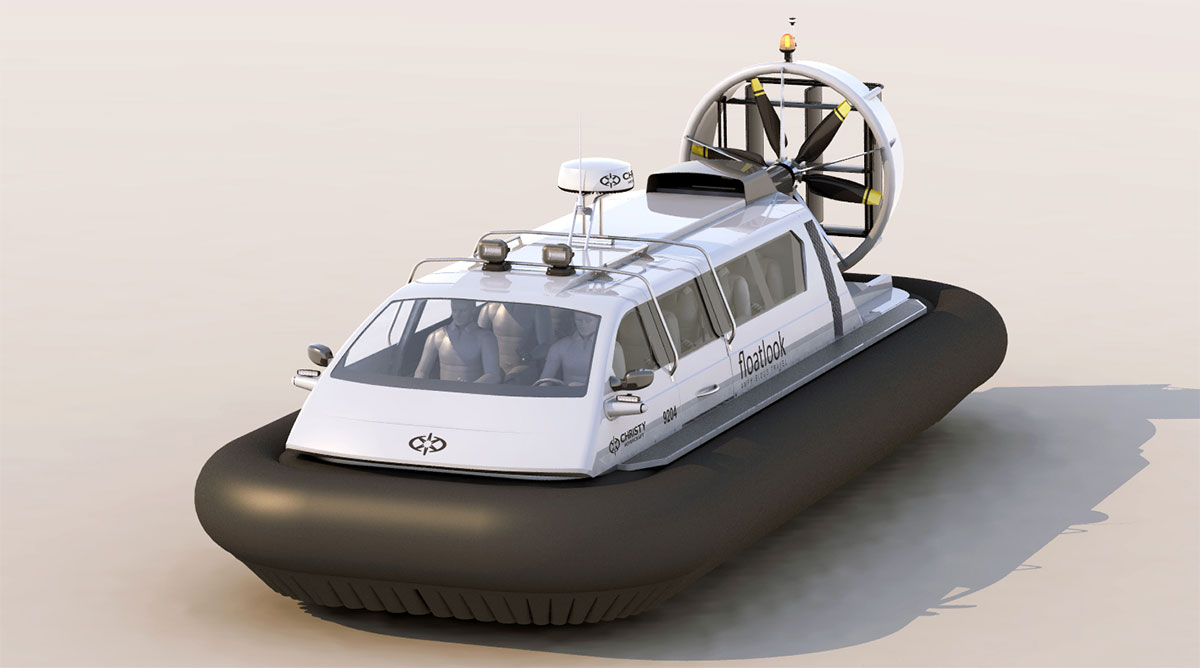

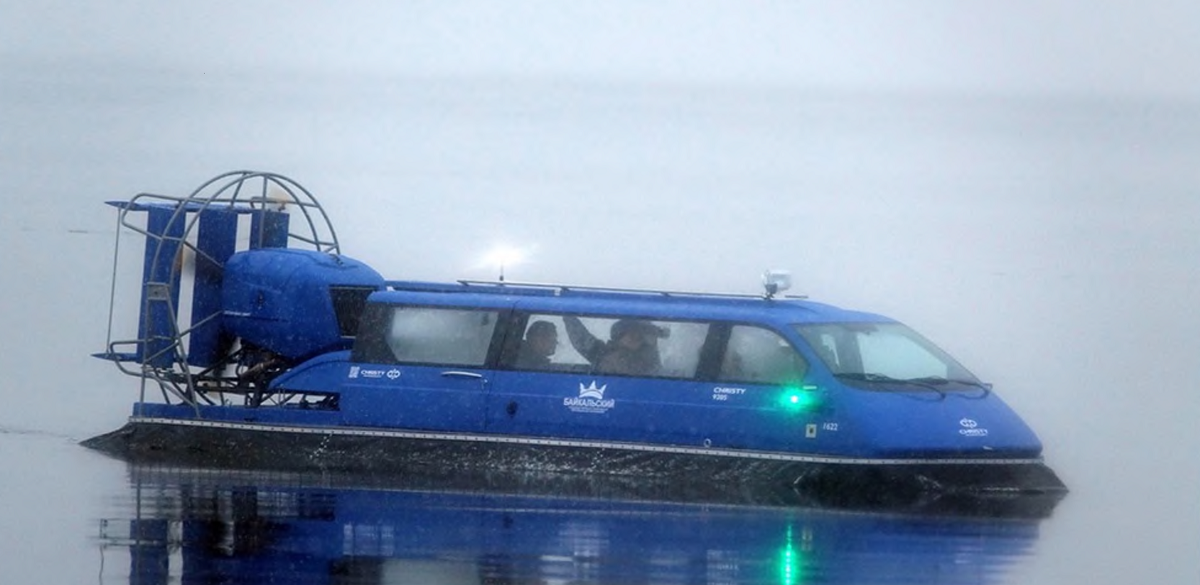

9 seats hovercraft Christy

Payload, kg 1200

Pax 10

Dimensions not on the cushion (L.W.H.), mm 8900×3700×2900

Weight, kg 1200-1300

Clearance, mm 400-450

Height overcome obstacles¸ mm 400-450

Wave, m 0,5

Wind, m/c 13, gusts up to 15

Cruising speed, km/h 70

Max speed, km/h 100

Slope overcome from a standstill/at fulll speed, deg 15/40

Engine(s) hp

Thurst 160

Lift 26

Type Petrol

Fuel consumption, l/h 20-25

The main tank fuel capacity, l 150

The structure of the skirt Balloon and the segments are made of nylon impregnated with urethane. The segments attached to the balloon with polyamide bolts and nuts.

Buoyancy Bottom based on sandwich panels of polyurethane foam and fiberglass provides 100% buoyancy. Even if the interior completely fill with water, ACV will remain afloat.

Traction system Traction (marching) three-blade propeller aircraft - 1600mm in diameter made with composite, Lifting fan - 9-blade propeller axial diameter of 710 mm

Transmission Factory-built gear reducer aircraft, made in Italy

Managing Exchange With two vertical rudders

Pitch control With two horizontal rudders fitted behind the fan ring

Electrical Engines equipped with: march - a powerful generator; Discharge - magdino

Bailing Electric bilge pump, extra - hand pump

Firefighting Portable carbon dioxide fire extinguisher

Navigation and communication Prepared a place for the marine compass, GPS-navigator, card plotter and radio. FM-radio and CD-player.

Additional options (for a fee) Custom colors, Guard railing, Front side windows with small, sliding, ventilating windows, Light with remote control, Electric winch (synthetic rope)

Shipped in 40-f container.

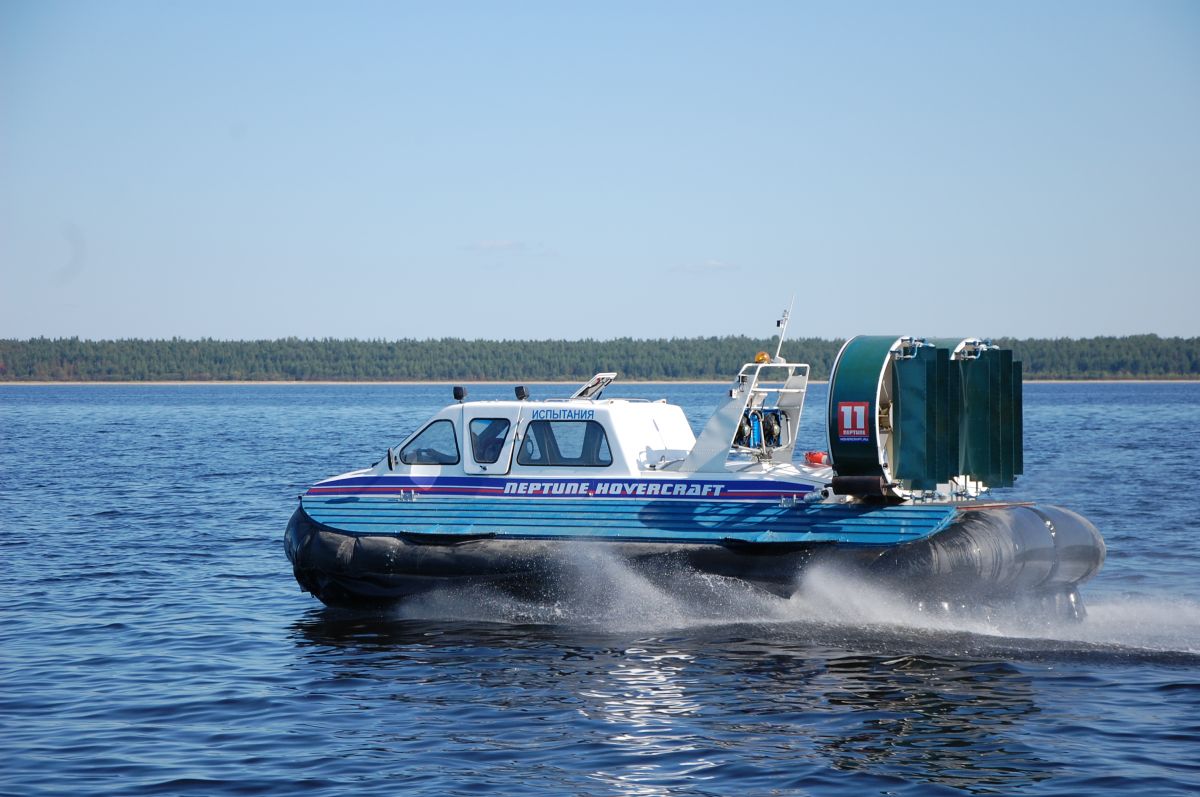

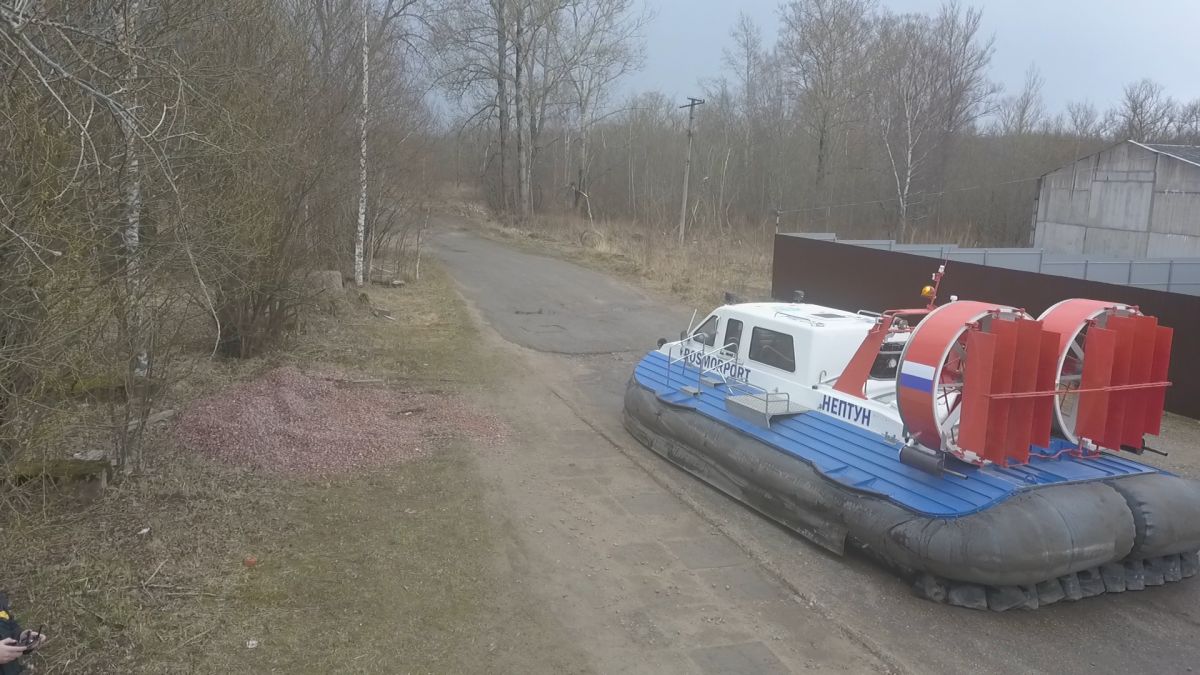

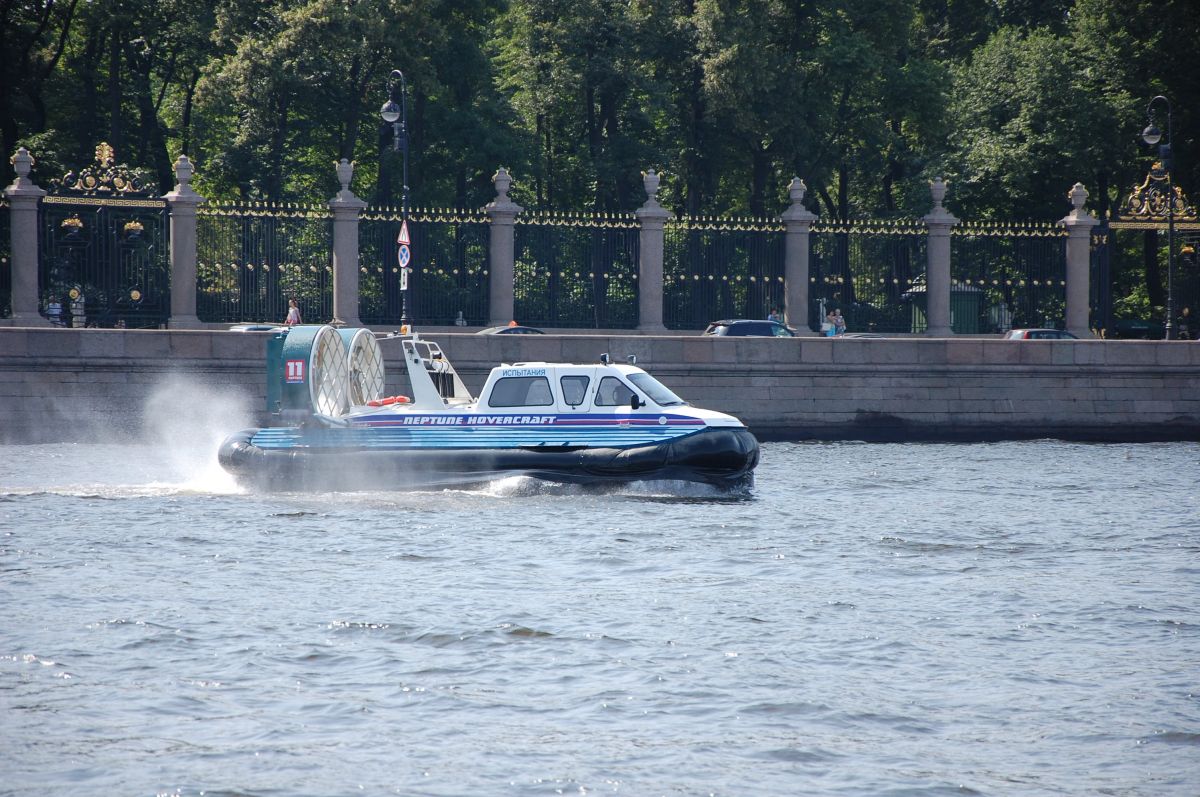

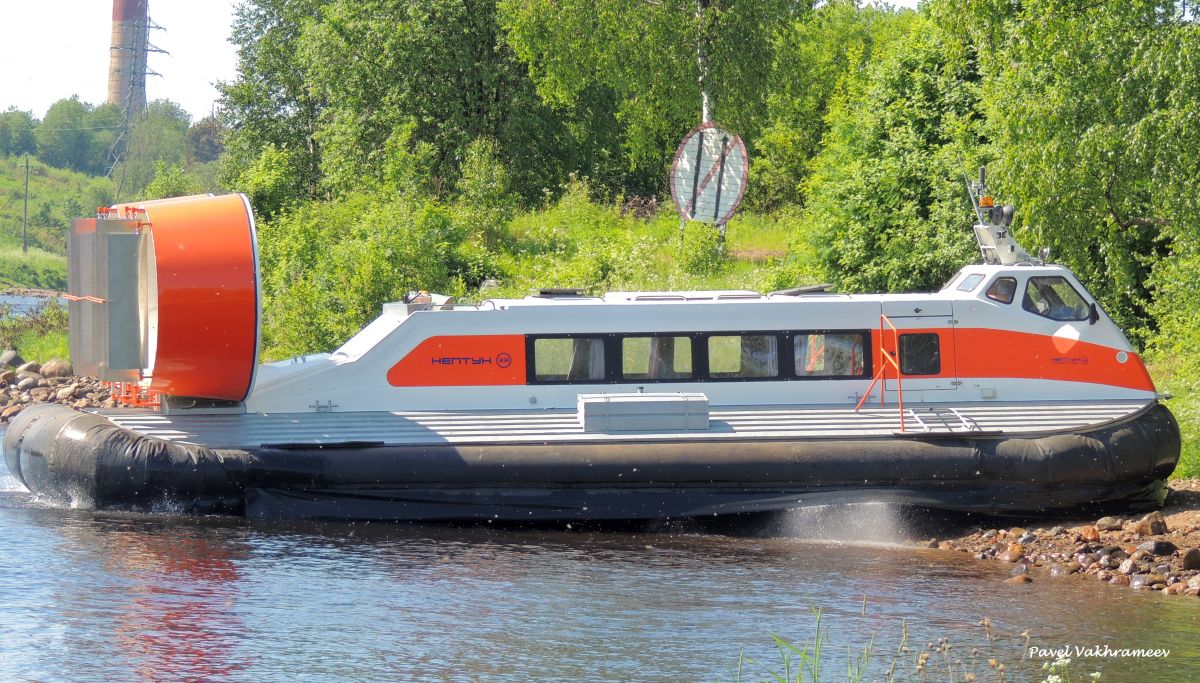

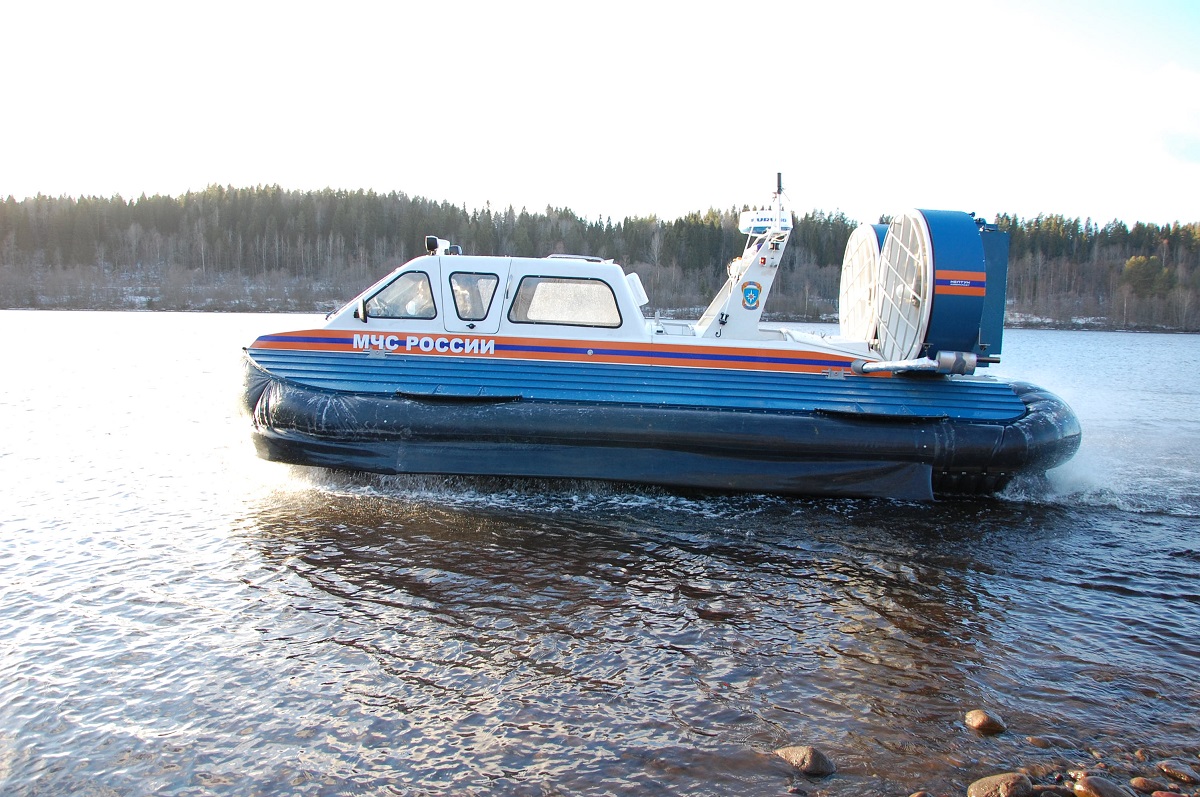

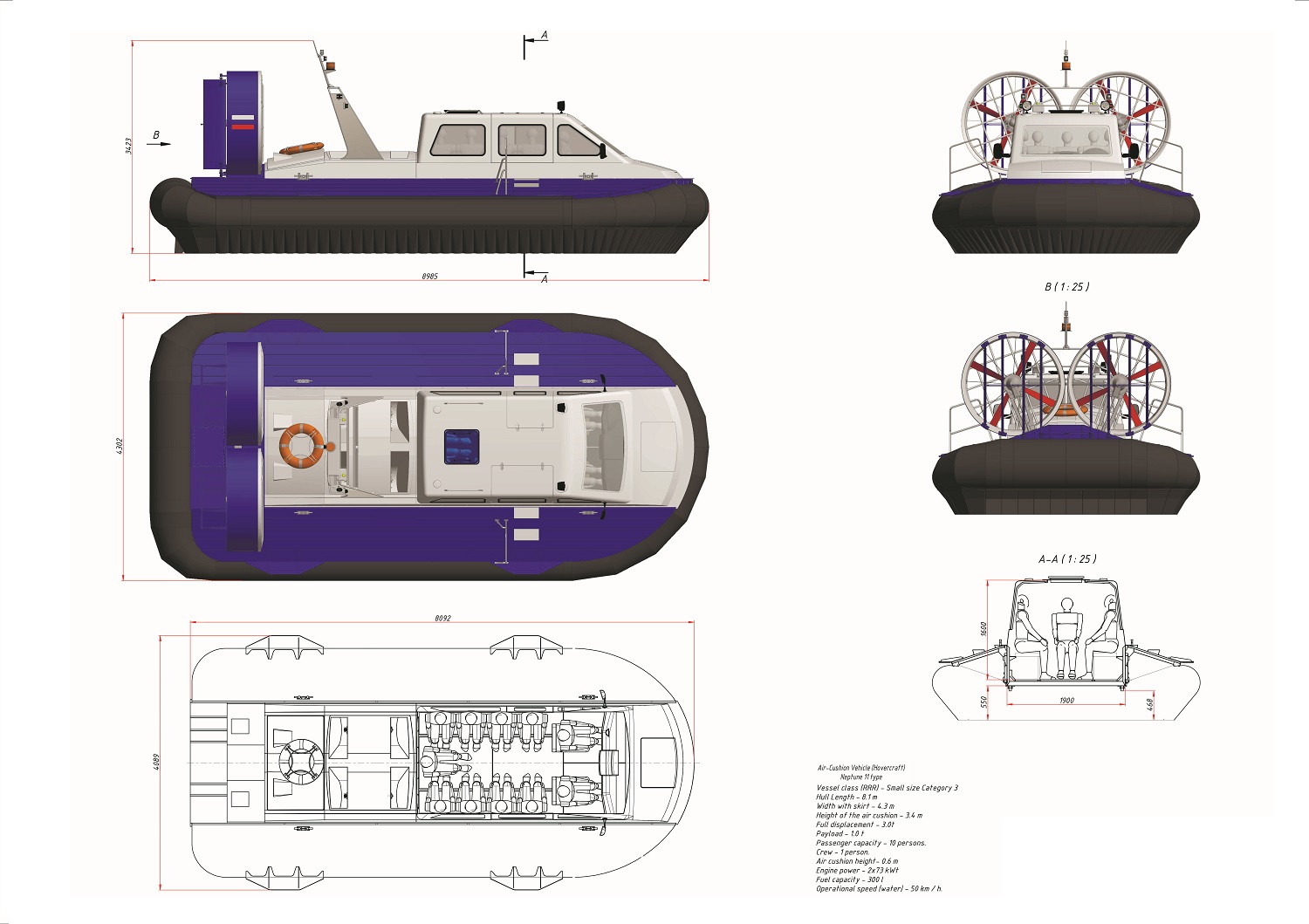

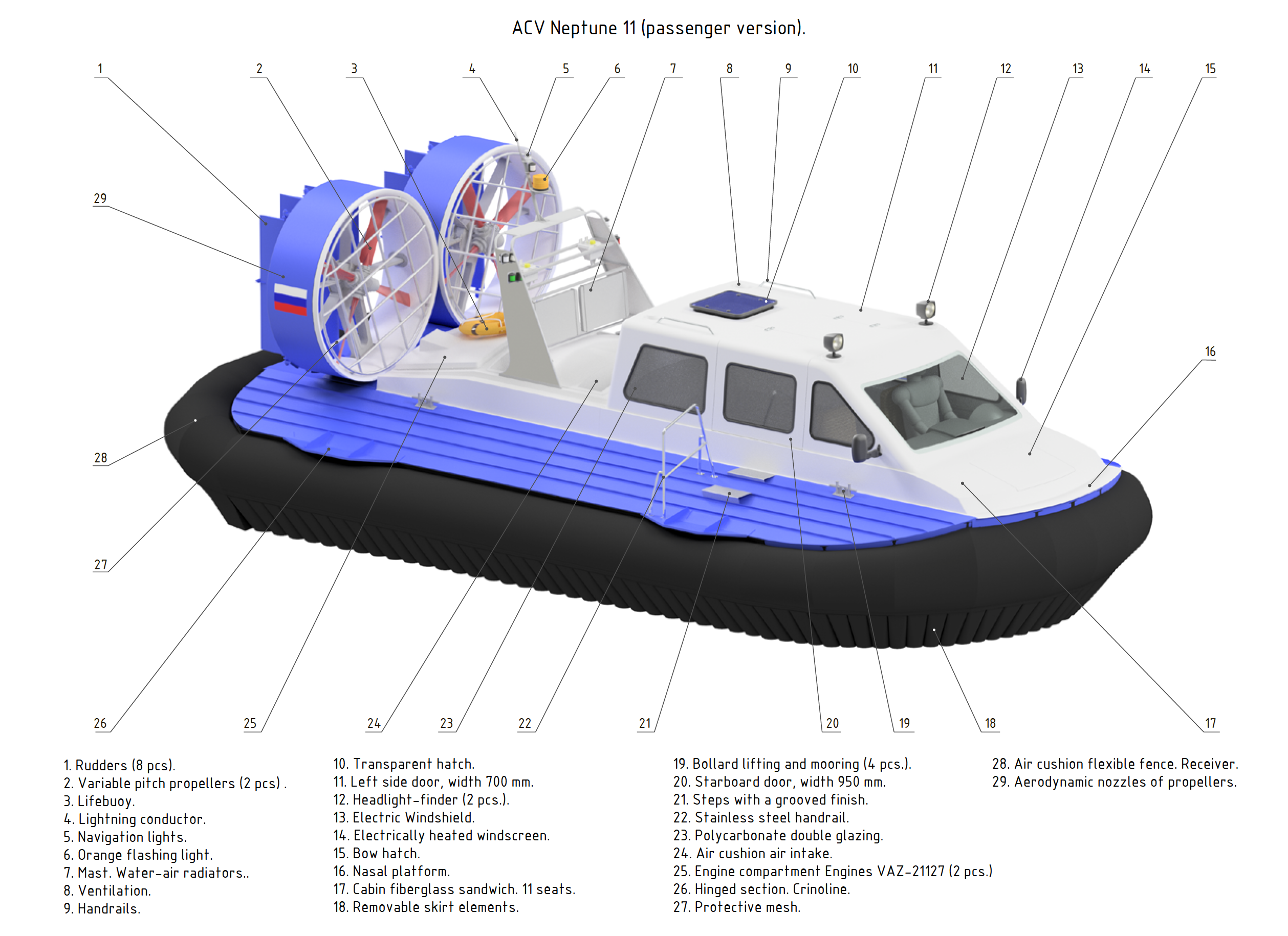

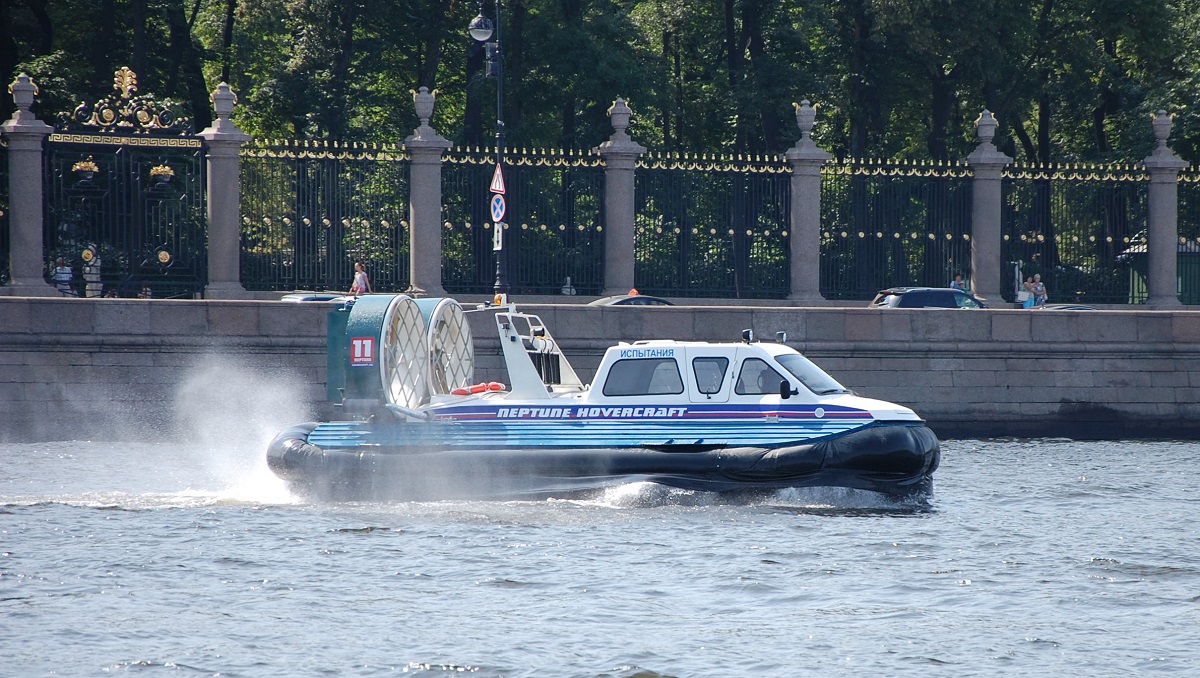

11 seats hovercraft Neptune-11

The Neptune 11 Argo high-speed hovercraft amphibious boat designed to carry up to 950 kg of cargo or up to 10 passengers. Hovercraft belongs to the class of “passenger” ACV and intended for the transportation of passengers through water, including those with a short access to the shore. The boat is able to overcome smoothed ledges up to 60 cm high and not smoothed up to 50 cm. The boat is able to reach a speed of about 70 km / h on water.

Operation is allowed at an outdoor temperature from -40º С to + 35ºС and a maximum wind speed of up to 12 m / s at any time of the year during daylight hours. Hovercraft for all cases of load operated in the daytime in the water, with a wave of not more than 1.2 m 1% of security. The movement of the boat allowed with the specified wave both in the air cushion mode and in the displacement mode. Allowed to operate on any other smooth flat surface, in extreme shallow water and wetland.

Main dimensions and characteristics

The greatest length on the body, m 8.1

The greatest width (with hinged sections), m 4.1

Pillow height (clearance), m 0.5

Passenger capacity, people 10

Minimum crew 1

Payload, t 0.95

Engine Petrol 100HP x 2

Operational speed (on water), km / h 45

Maximum speed (on water), km / h 70

Fuel capacity, l 300

Operational fuel consumption on water, l / h 22

Autonomy in fuel reserves, h 12

Safe wave height, m 1.2

Shipped in 40-f container.

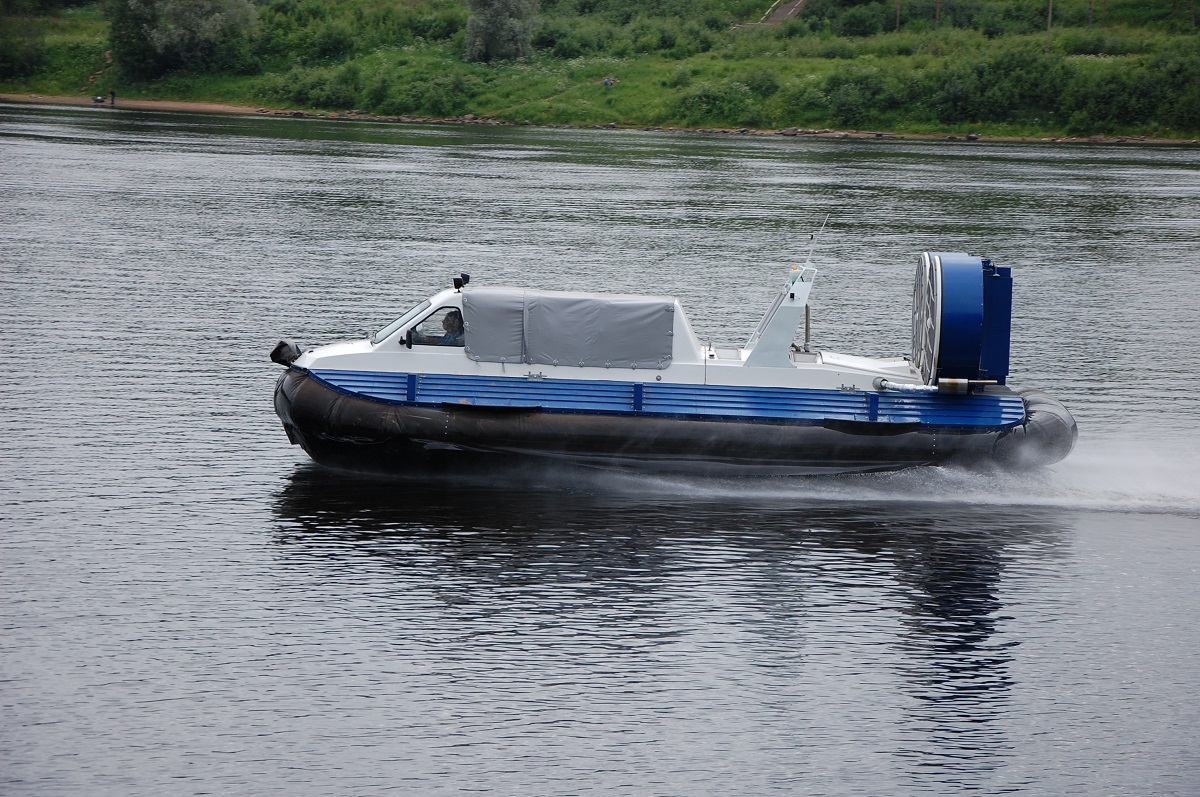

15 seats hovercaft Neptune-15

The Neptune 15 Leopard high-speed hovercraft amphibious boat

designed to carry up to 1450 kg of cargo or 2 passengers and 1200 kg of cargo or up to 14 passengers. Hovercraft belongs to the class of “passenger” ACV and intended for the transportation of passengers by water, including with short-term ashore. The boat is able to overcome smoothed ledges up to 80 cm high and not smoothed up to 40 cm. The boat is capable of speeds of about 70 km / h on water.

Operation is allowed at an outdoor temperature from -40º С to + 35ºС and a maximum wind speed of up to 12 m / s at any time of the year during daylight hours. Hovercraft for all cases of load can operate in the daytime in the water, with a wave of not more than 1.2 m 1% of security. The movement of the boat allowed with the specified wave both in the air cushion mode and in the displacement mode. Allowed to operate on any other flat hard surface, in extreme shallow water and swampy surface.

The greatest length over the hull, m 9.1

The greatest width (with hinged sections), m 4.1

Pillow height (clearance), m 0.6

Passenger capacity, people 14

Minimum crew 1

Payload, t 1.45

Engine Diesels Cummins 130HP x 2 or Iveco 130HP x 2

Operational speed (on water), km / h 45

Maximum speed (on water), km / h 70

Fuel capacity, l 300

Operational fuel consumption on water, l / h 24

Autonomy by fuel, h 12

Safe wave height, m 1.2

Supervision (option 1), specially designed vessel up to 12 places (ACV)

Supervision (option 2) River register, small up to 12 places, category * 3

Shipped in 40-f container.

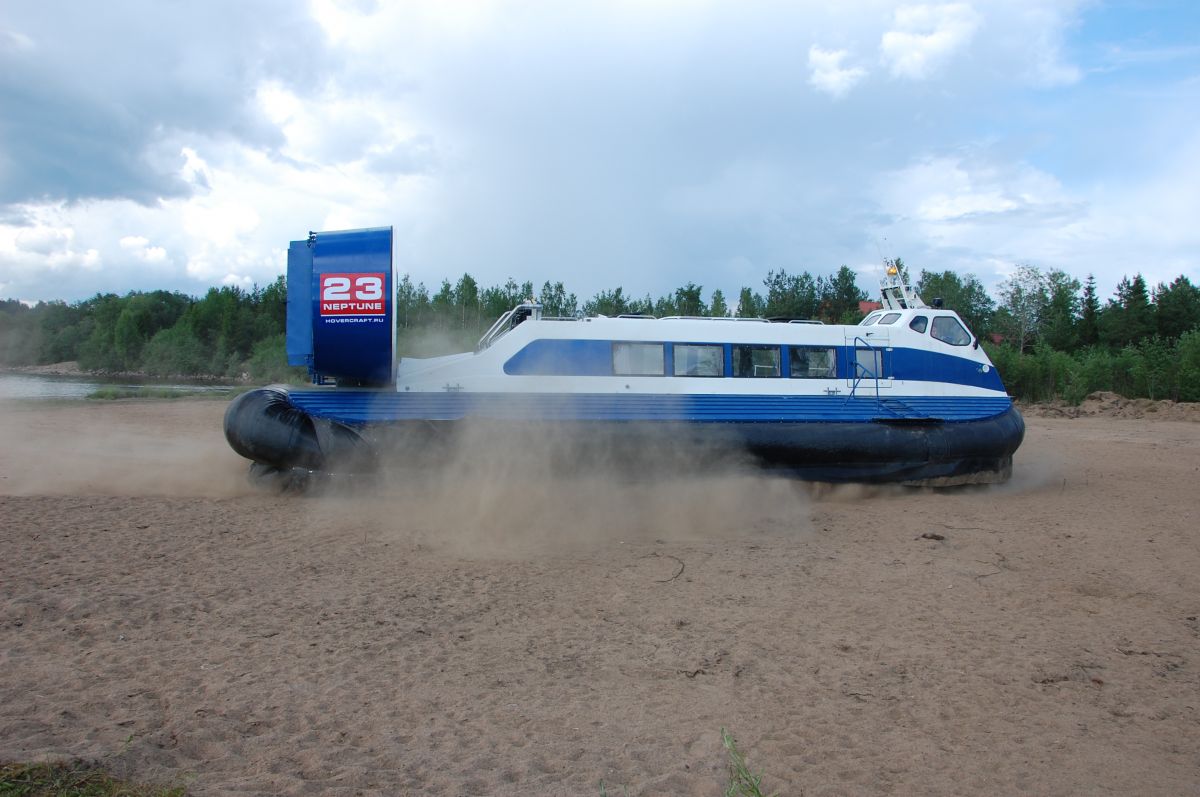

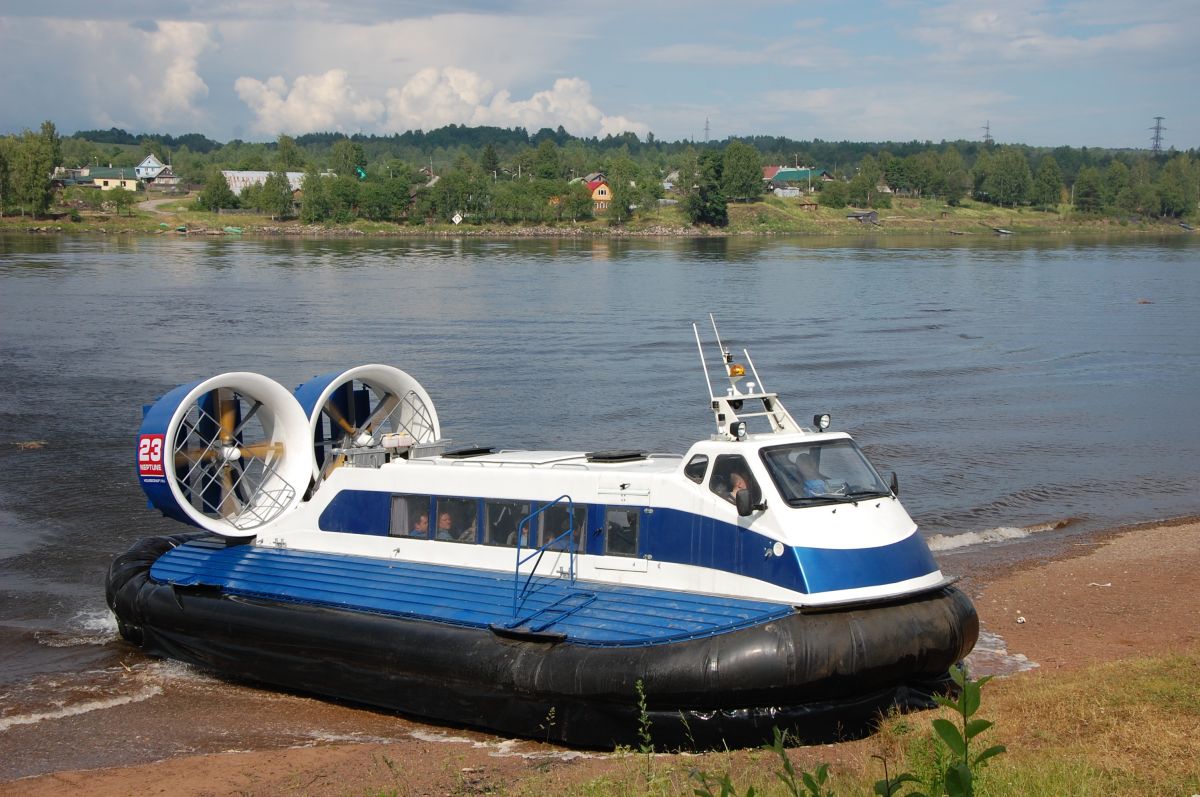

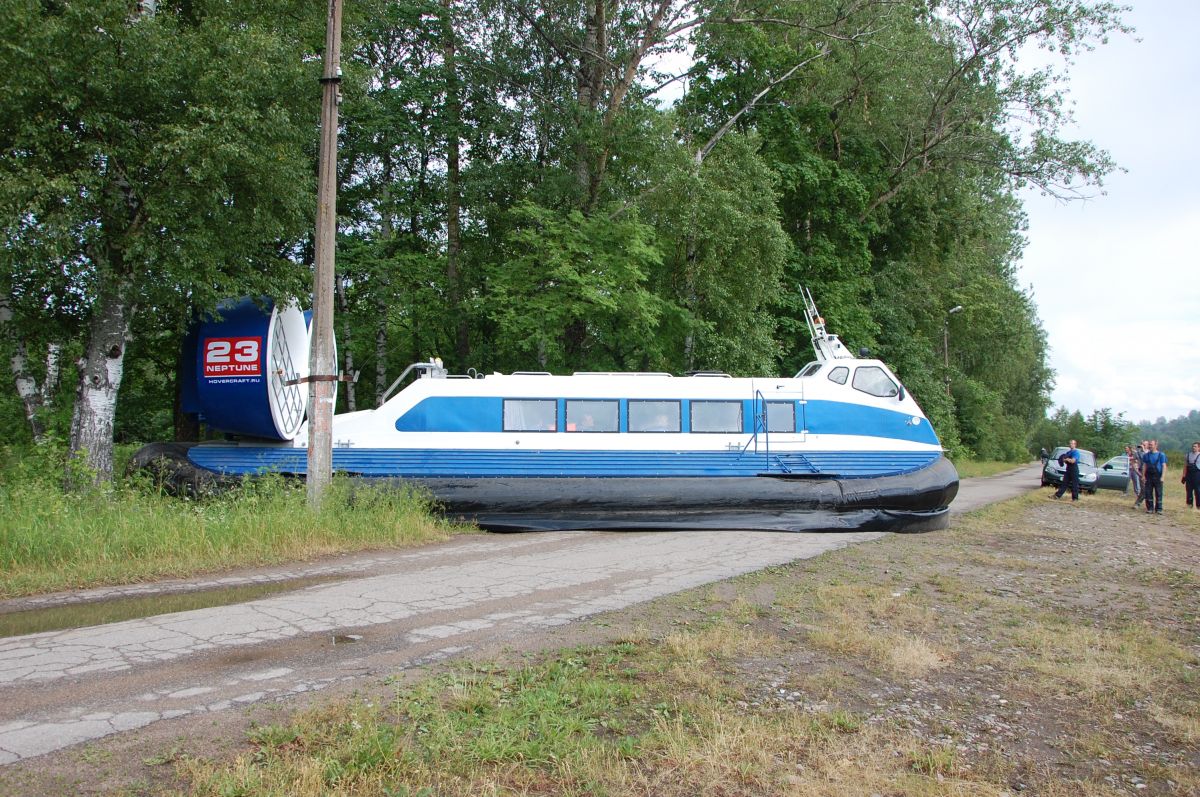

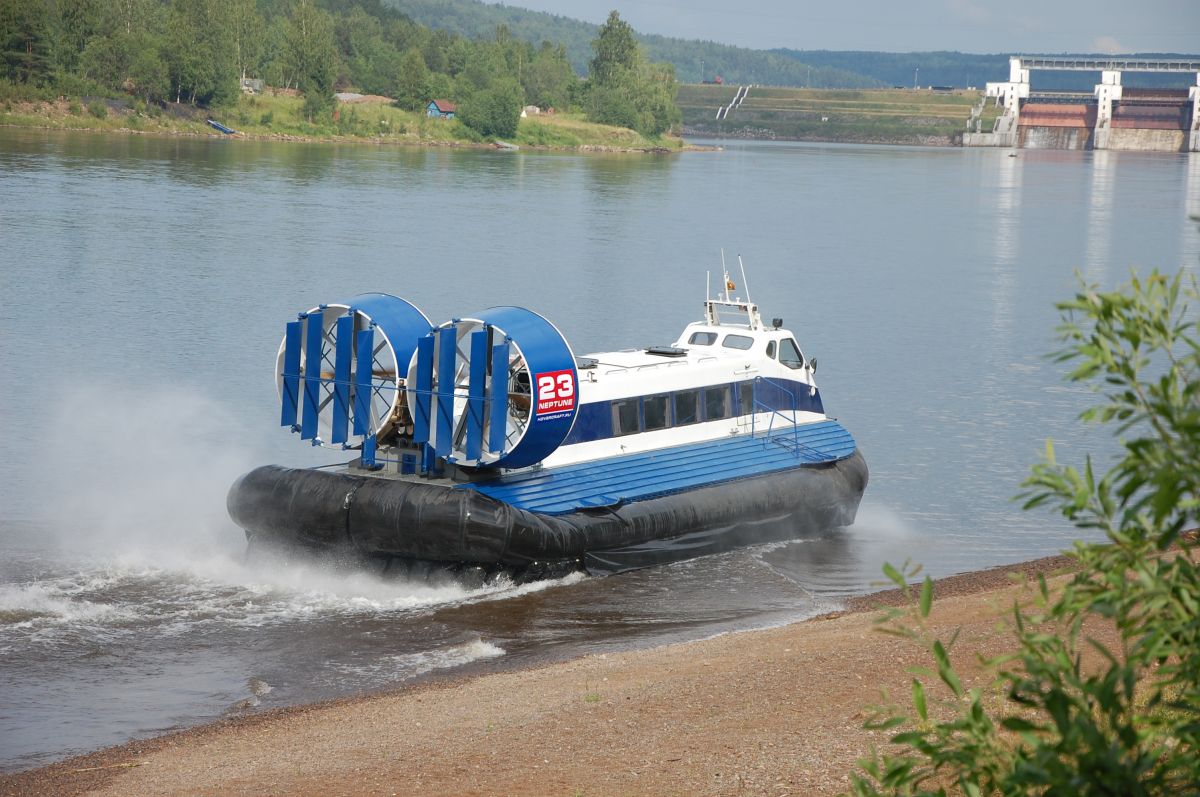

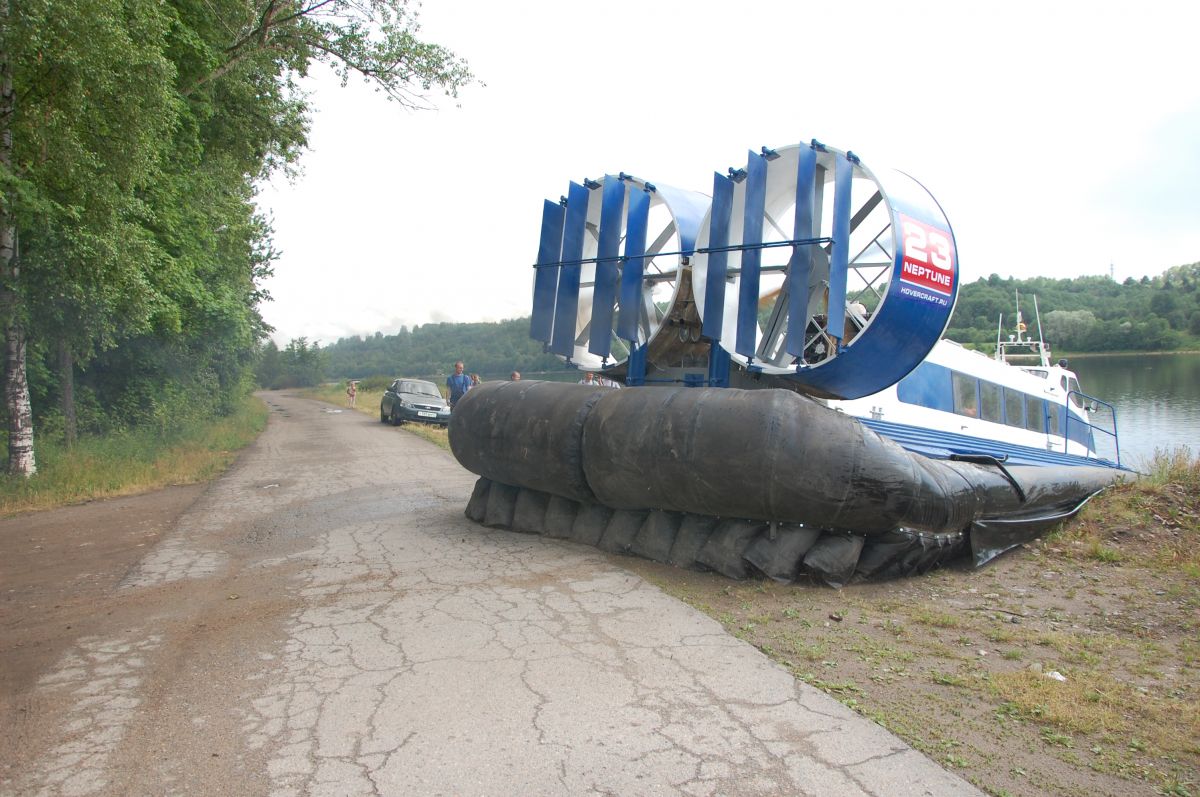

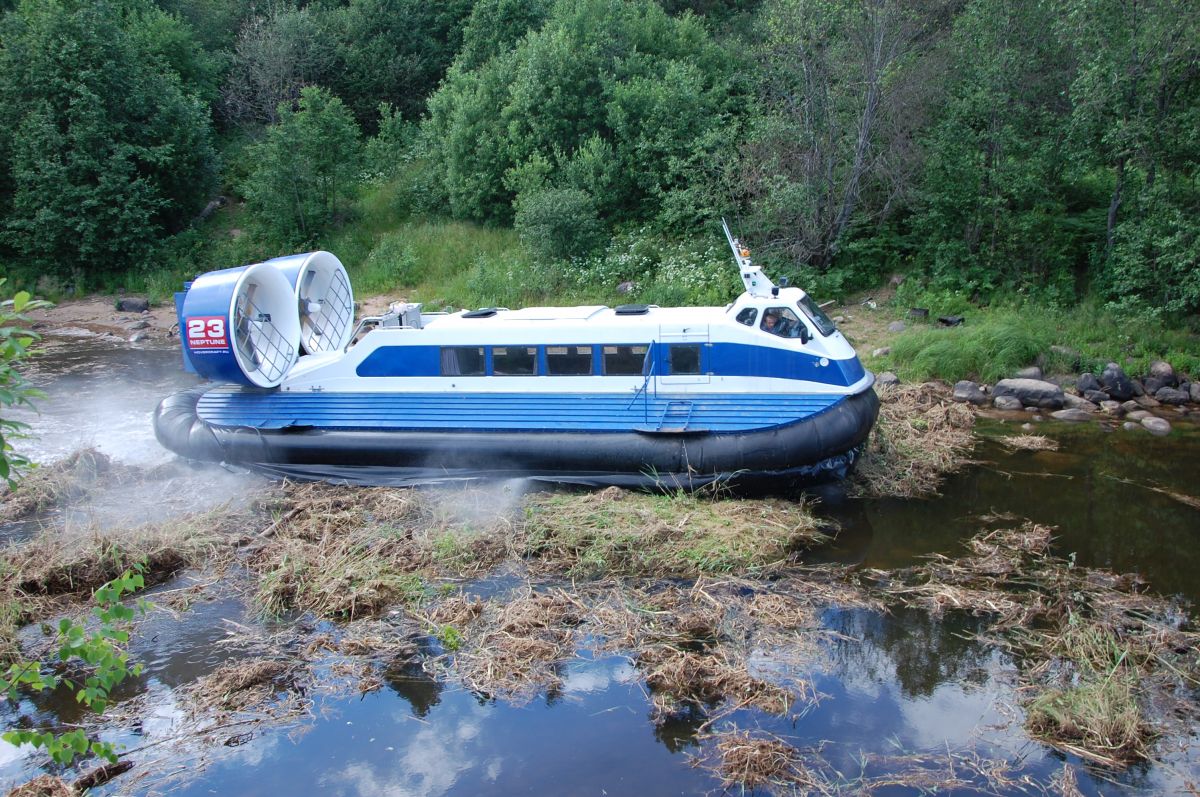

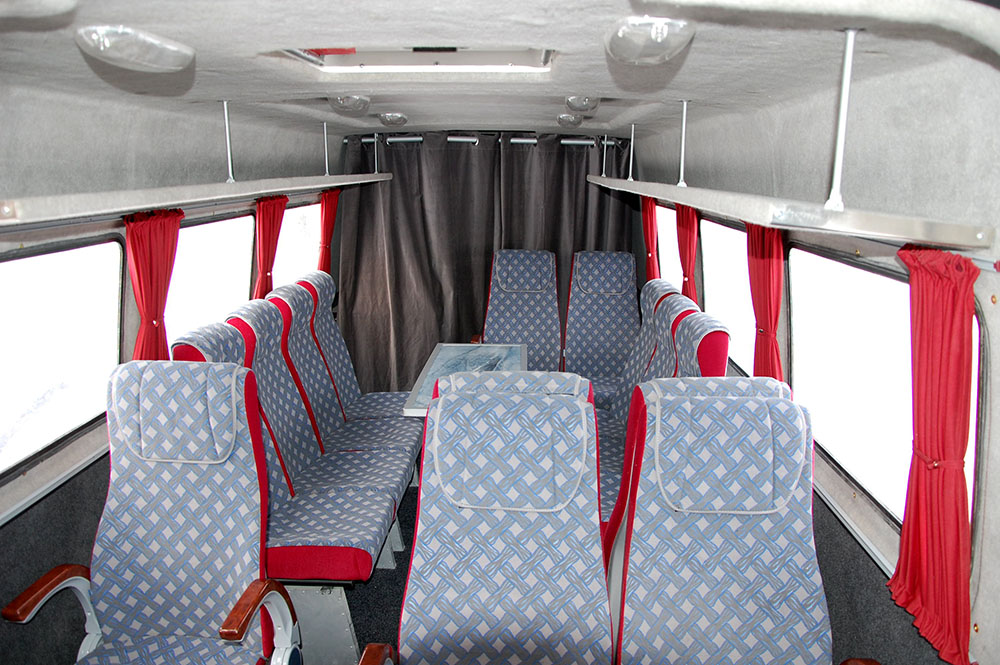

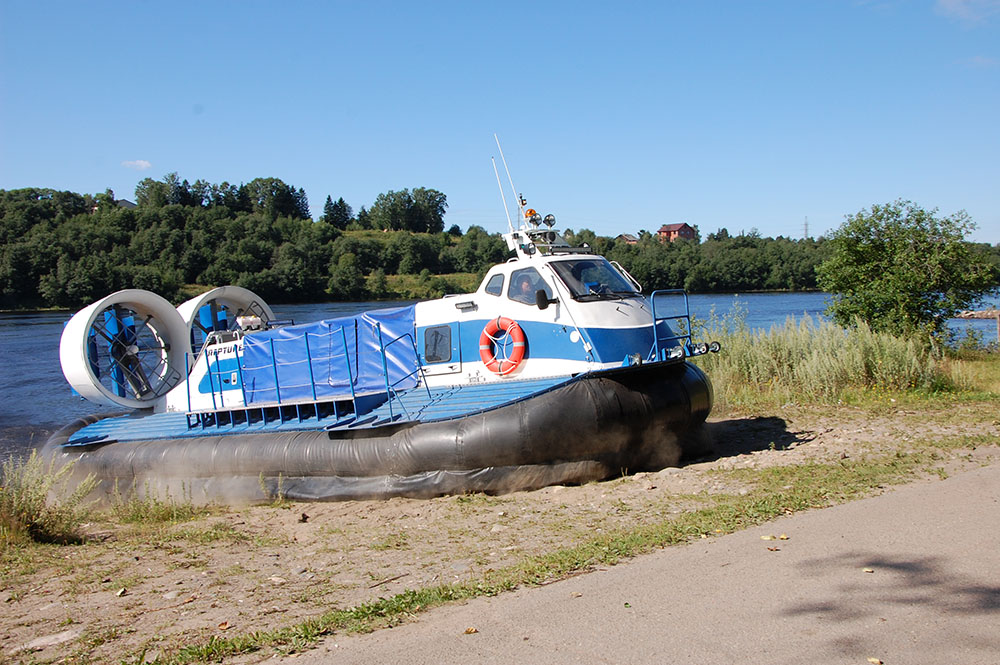

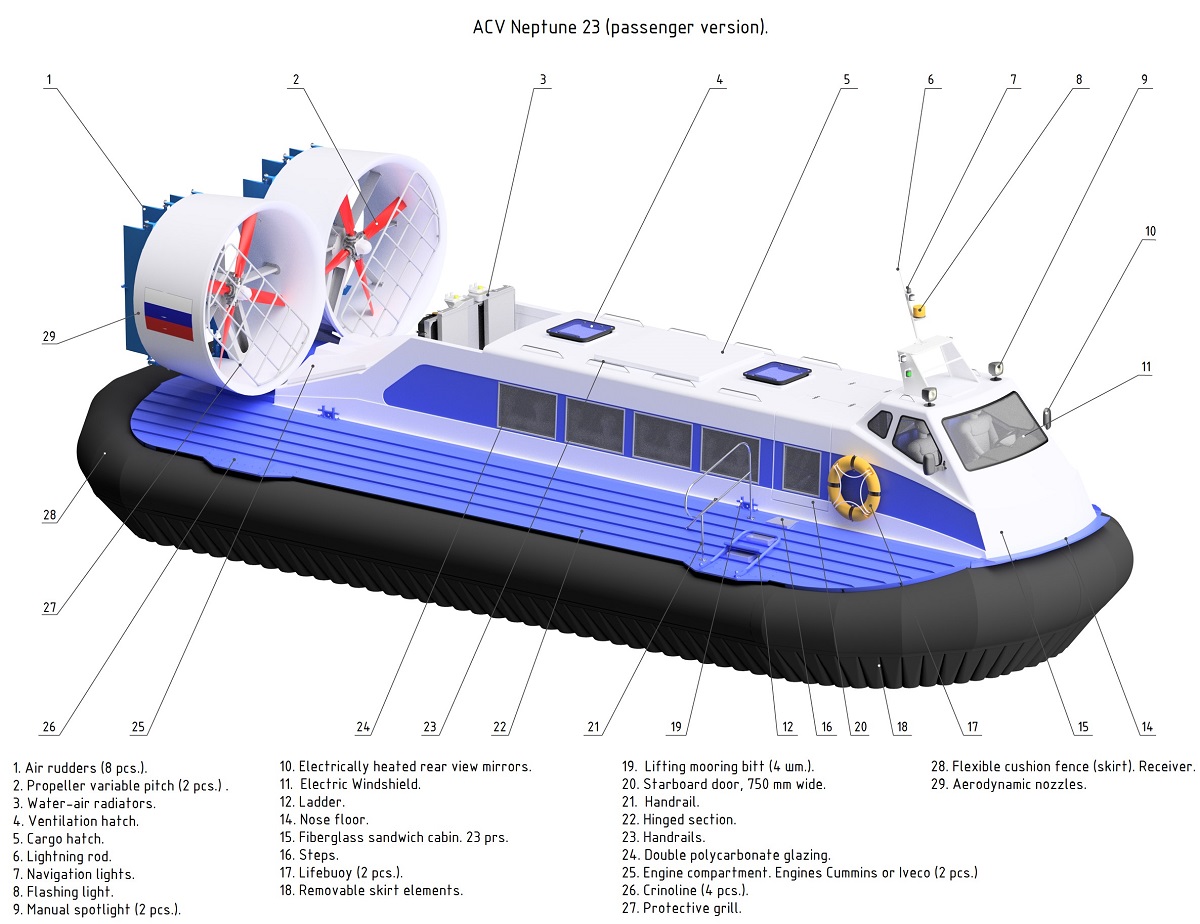

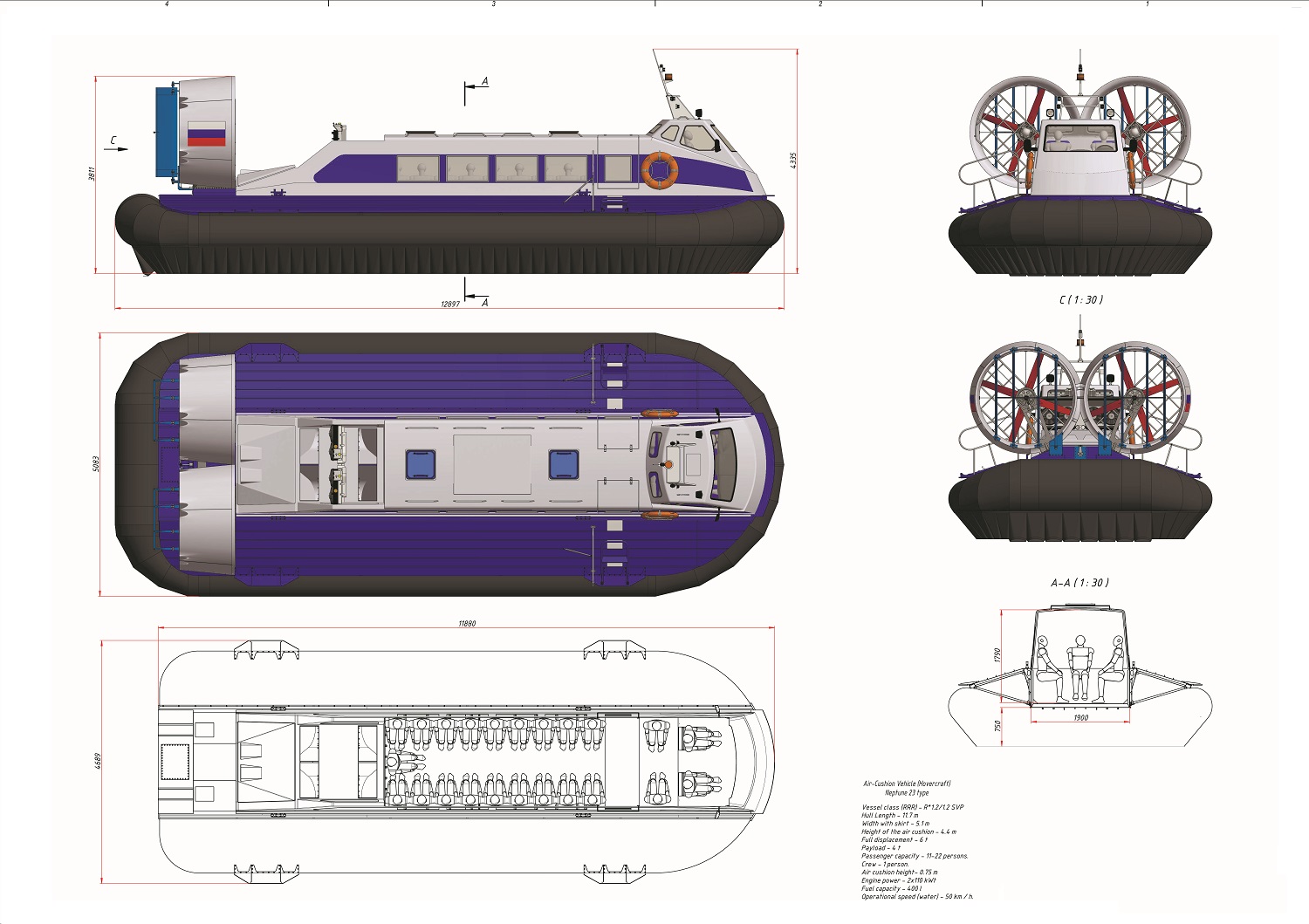

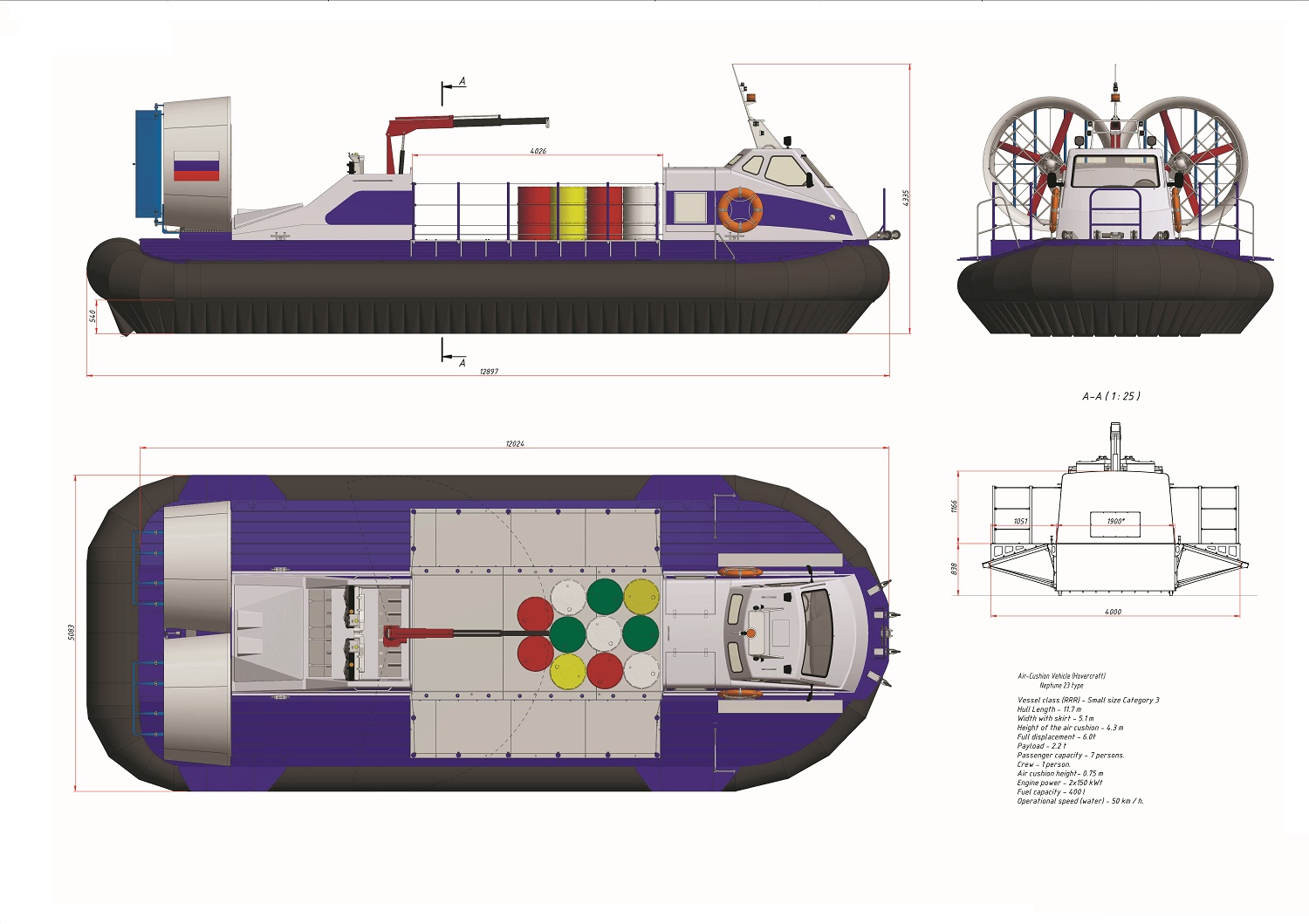

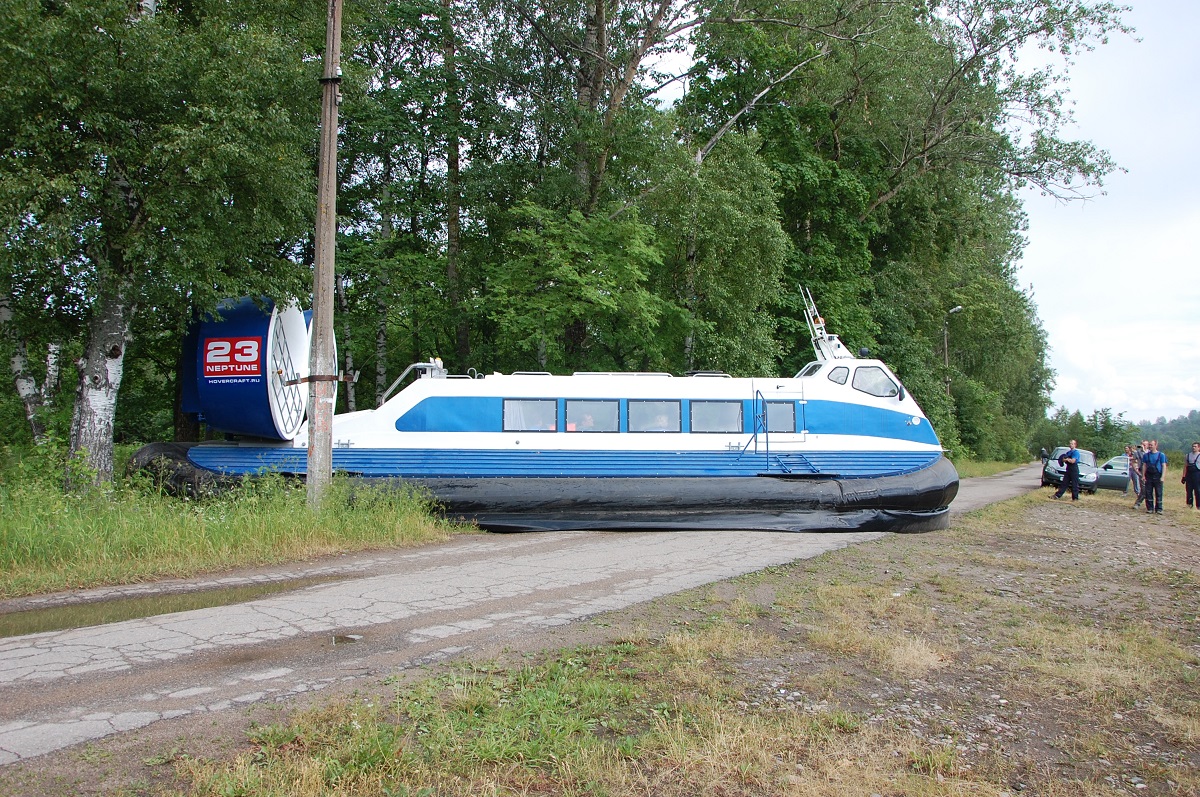

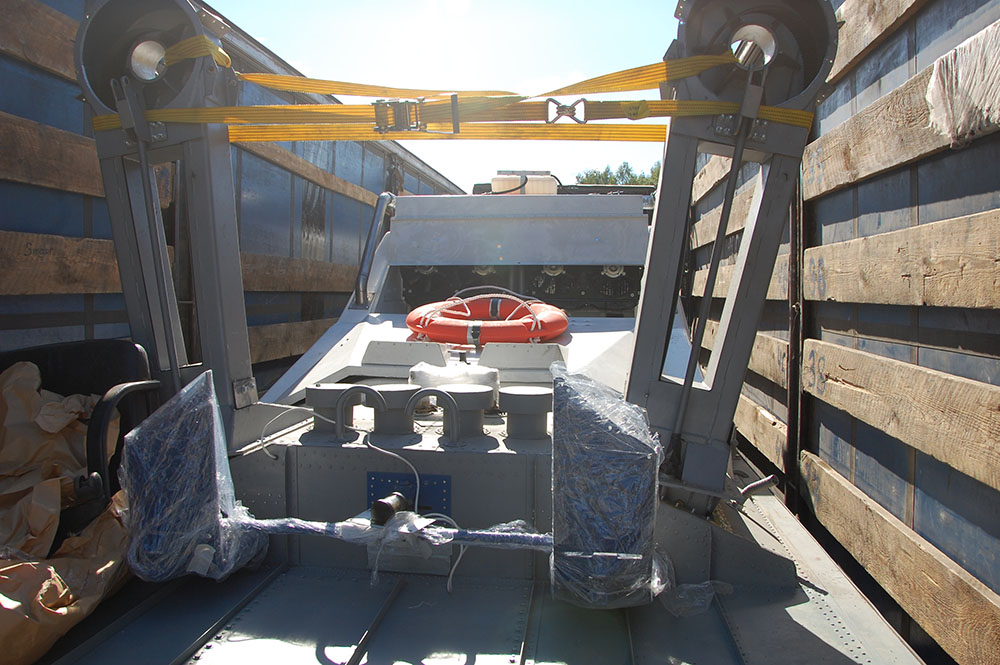

23 seats hovercraft Neptune-23

The high-speed amphibious hovercraft Neptune 23 “Panther”

designed to carry up to 2.1 tons of cargo or up to 22 passengers or up to 7 passengers + 1250 kg of cargo. Hovercraft belongs to the class of “passenger” ACV and intended for the transportation of passengers by water, including with short-term ashore. The boat is able to overcome smoothed ledges up to 80 cm high and not smooth - up to 55 cm. The boat is capable of speeds up to 80 km/h on water.

Operation is allowed at an outdoor temperature from -40º С to + 35ºС and a maximum wind speed of up to 12 m / s at any time of the year during daylight hours. Hovercraft for all cases of load operated in the waters, with a wave of not more than 1.2 m 1% of security. The movement of the boat allowed with the specified wave both in the air cushion mode and in the displacement mode. Allowed to operate on any other flat hard surface, in extreme shallow water and swampy surface.

The greatest length over the hull, m 11.8

Maximum width (with hinged sections), m 4.3

Cushion height (clearance), m 0.75

Passenger capacity max., Pers. 22

Minimum crew 1

Payload, t 2.1

Engine Diesels Cummins 150HP x 2 or Iveco 197HP x 2

Operational speed (on water), km / h 45

Maximum speed (on water), km / h 80

Fuel reserve, l 400

Operational fuel consumption on water, l / h 35

Autonomy by fuel, h 12

Safe wave height, m 1.2

Supervision (option 1) GIMS, specially designed vessel up to 12 seats (ACV)

Supervision (option 2) River register, small up to 12 seats, category * 3

Supervision (option 3) River register, passenger 22 seats, class P * 1.2 / 1.2 ACV

Shipped in one 40-f container and one 20-f container

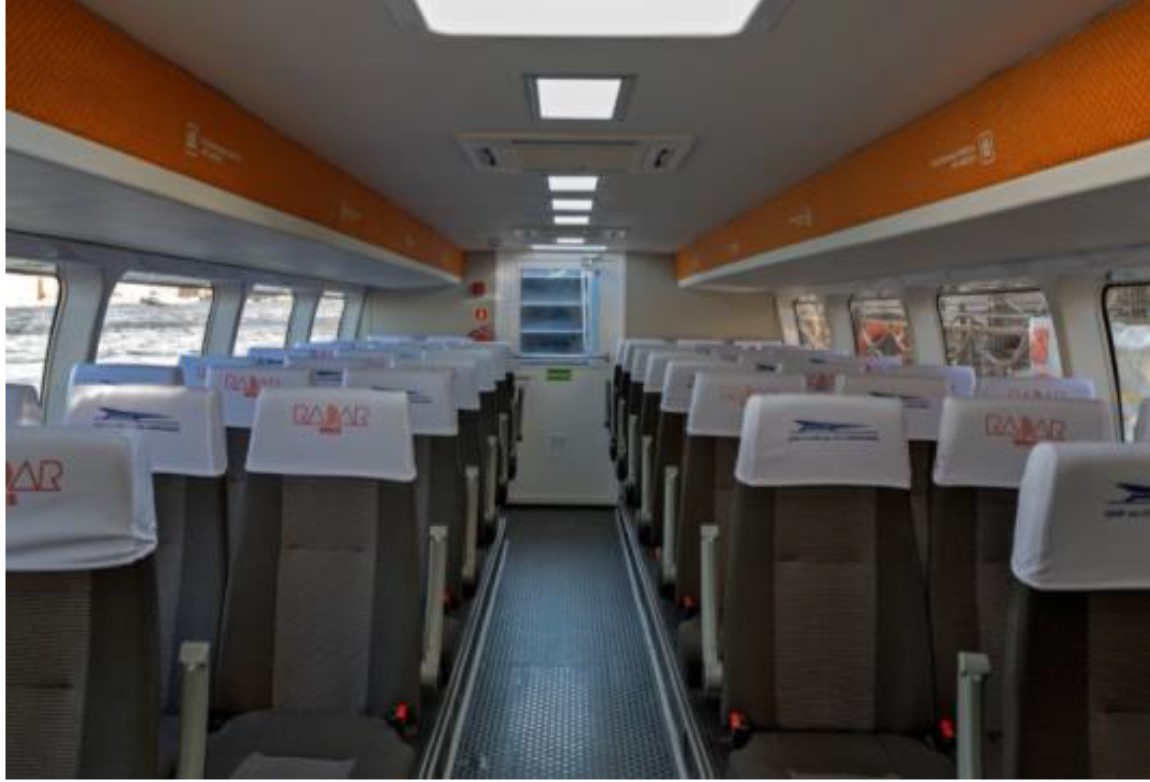

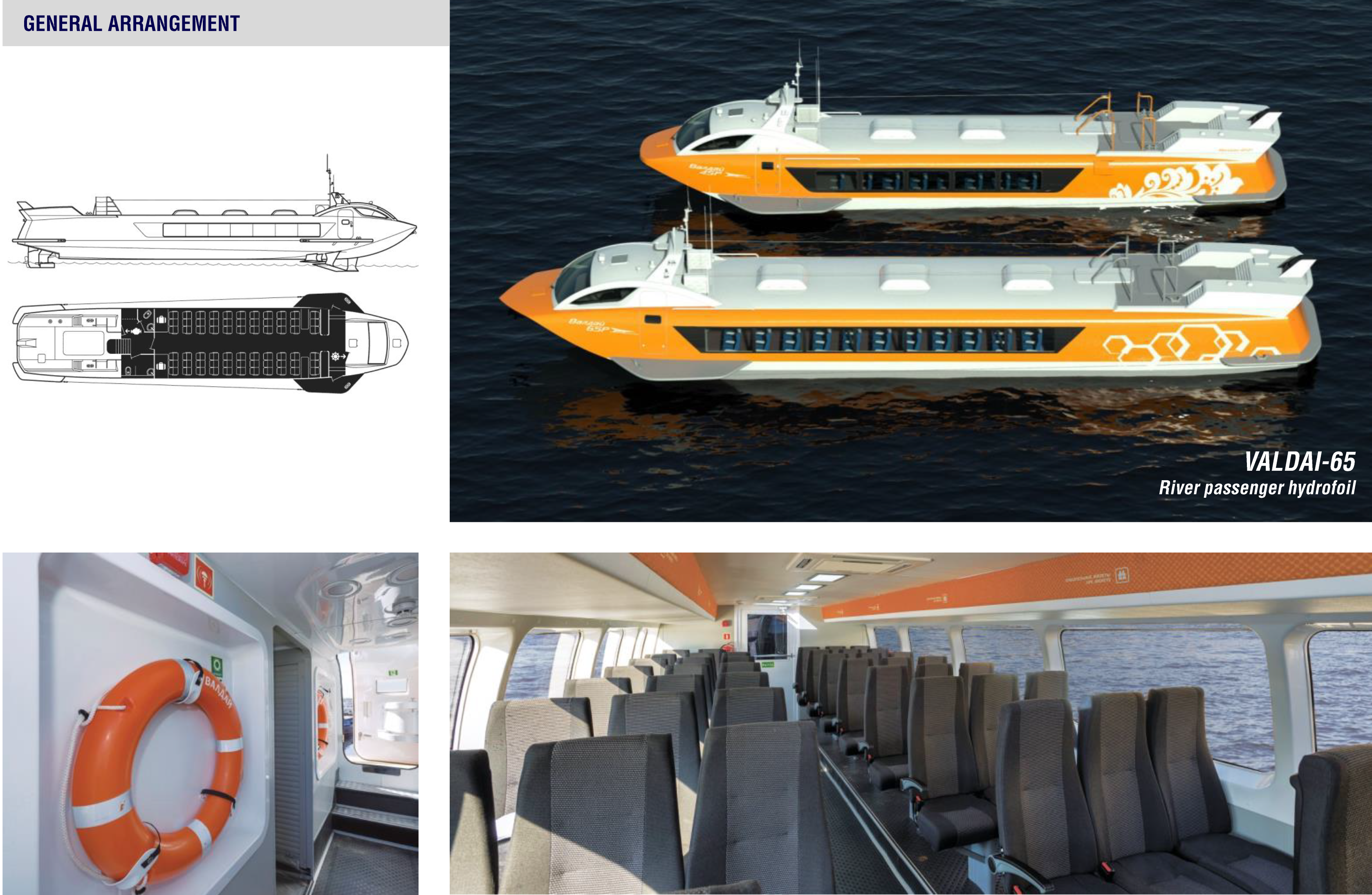

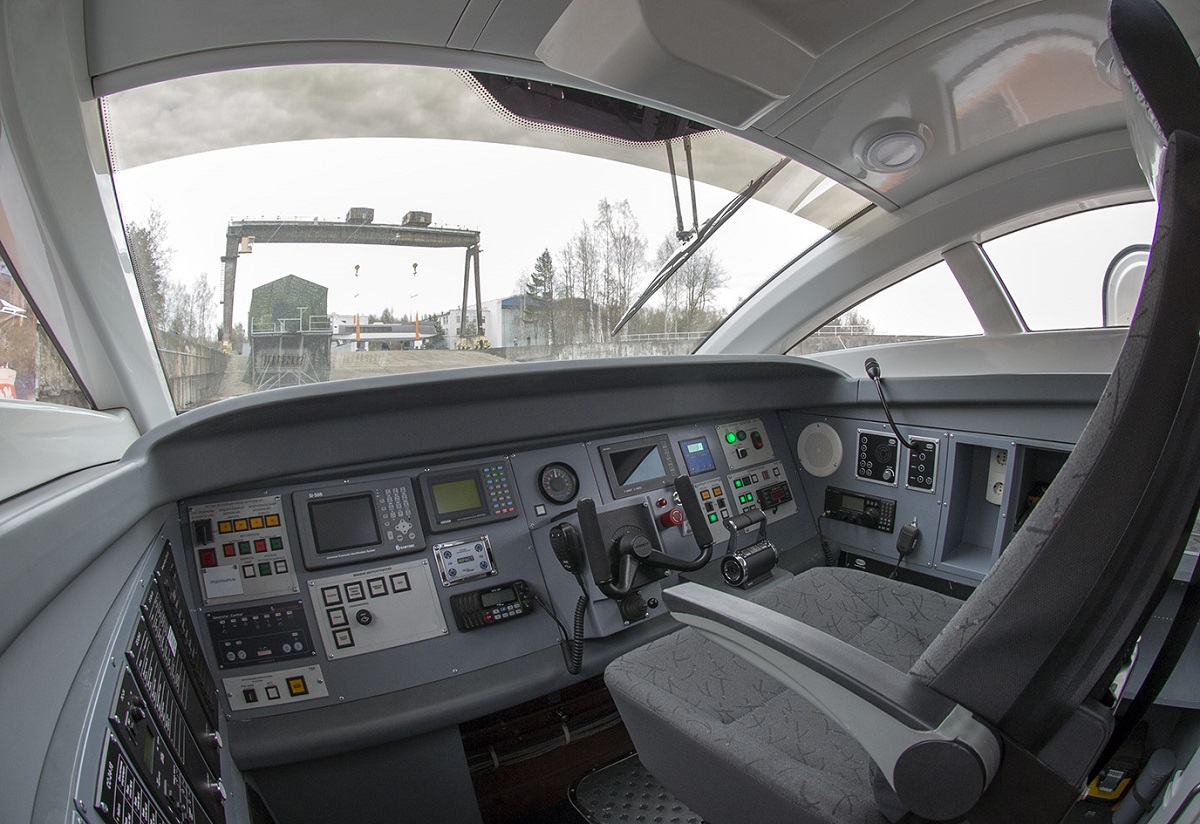

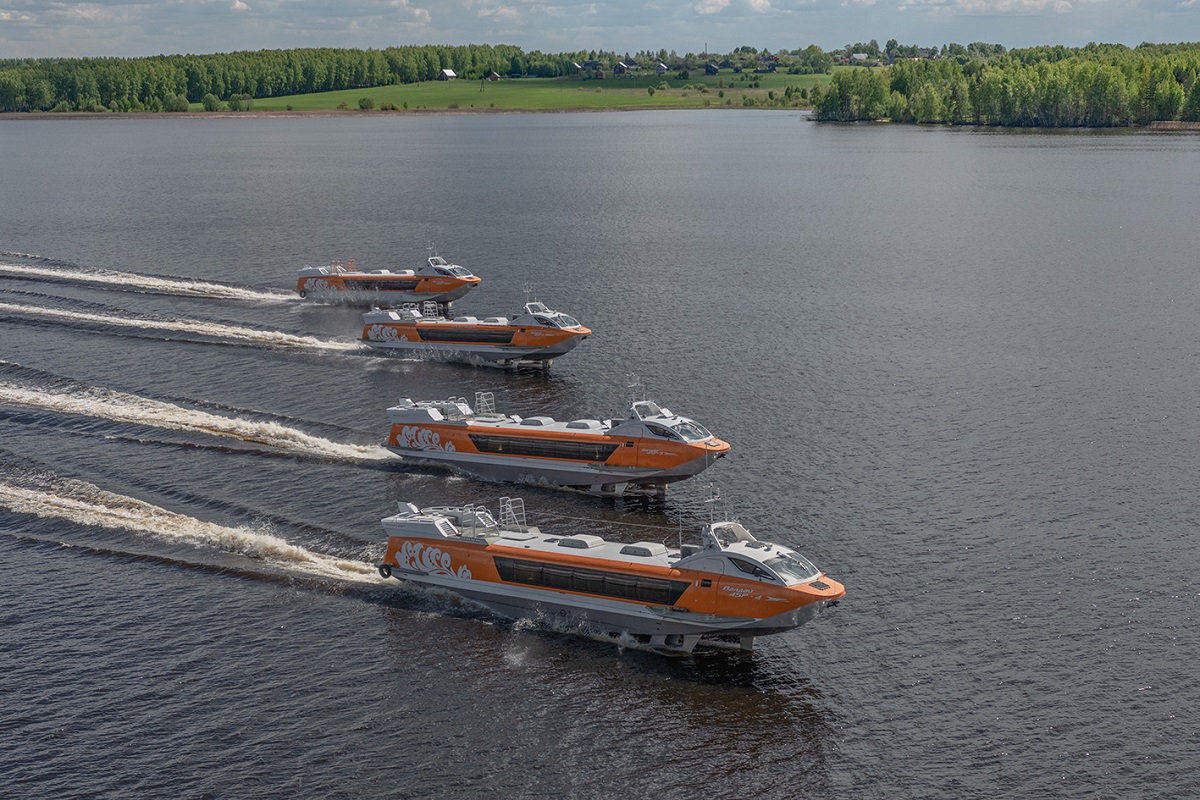

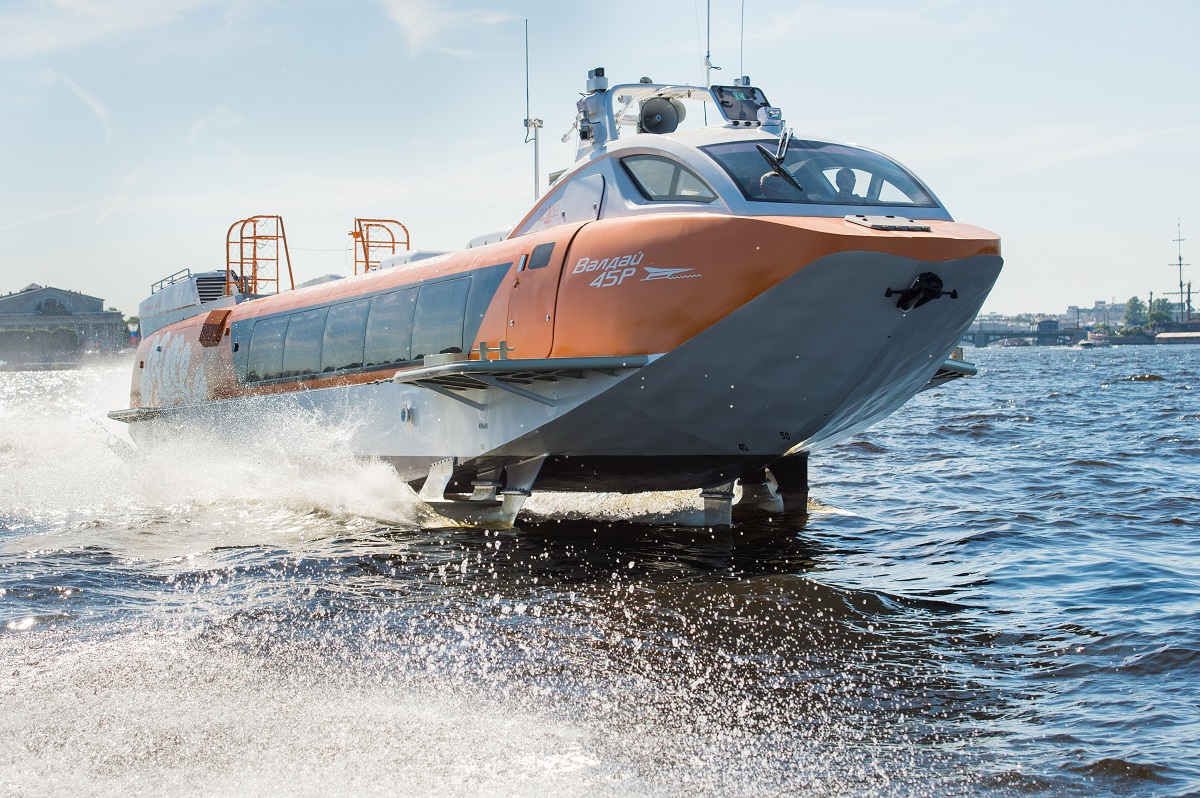

45 seats hydrofoil Valdai-45

River Register

* R 1.2 / 0.7 Hydrofoil craft passenger A

SEAKEEPING

Safe motion in foilborne mode with speed of 45-50 km/h is provided at the wave height (hw1%) up to 0.7 m and wind force of 2 points according to the Beaufort scale.

Safe cruising in a hullborne mode is ensured at the wave height (hw1 %) up to 1.2 m and wind force up to 3 points according to the Beaufort scale.

MAIN ENGINES

Type: D2842LE410 (MAN, Germany)

Total power max: 809 kW

Total power at cruising speed: 610 kW

Length overall, m 21.3

Beam overall, m 5.2

Depth at foilborne, m 6.3

Hullborne draft, m 1.1

Full displacement, t 21.4

Cruising speed, km/h 65

Passengers 45 (Up to 53)

Crew 2

Maximum range, km 500

Cruising endurance, hours 8

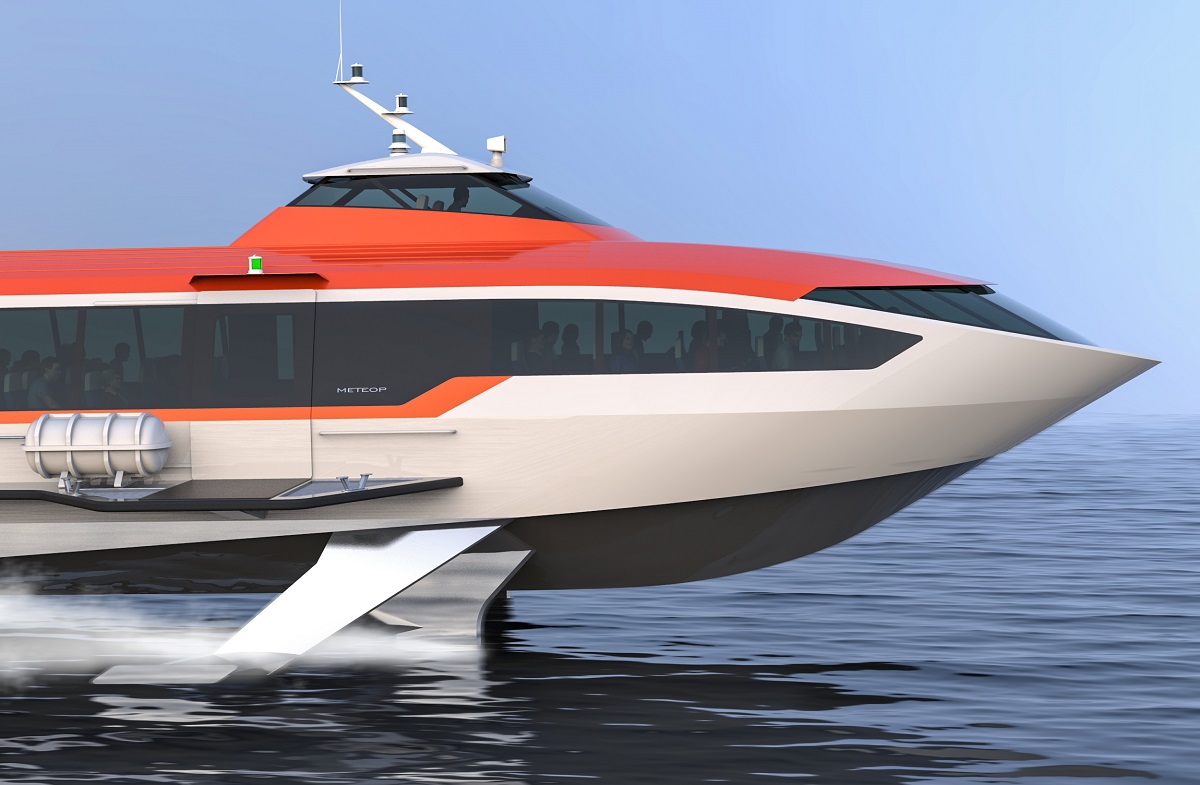

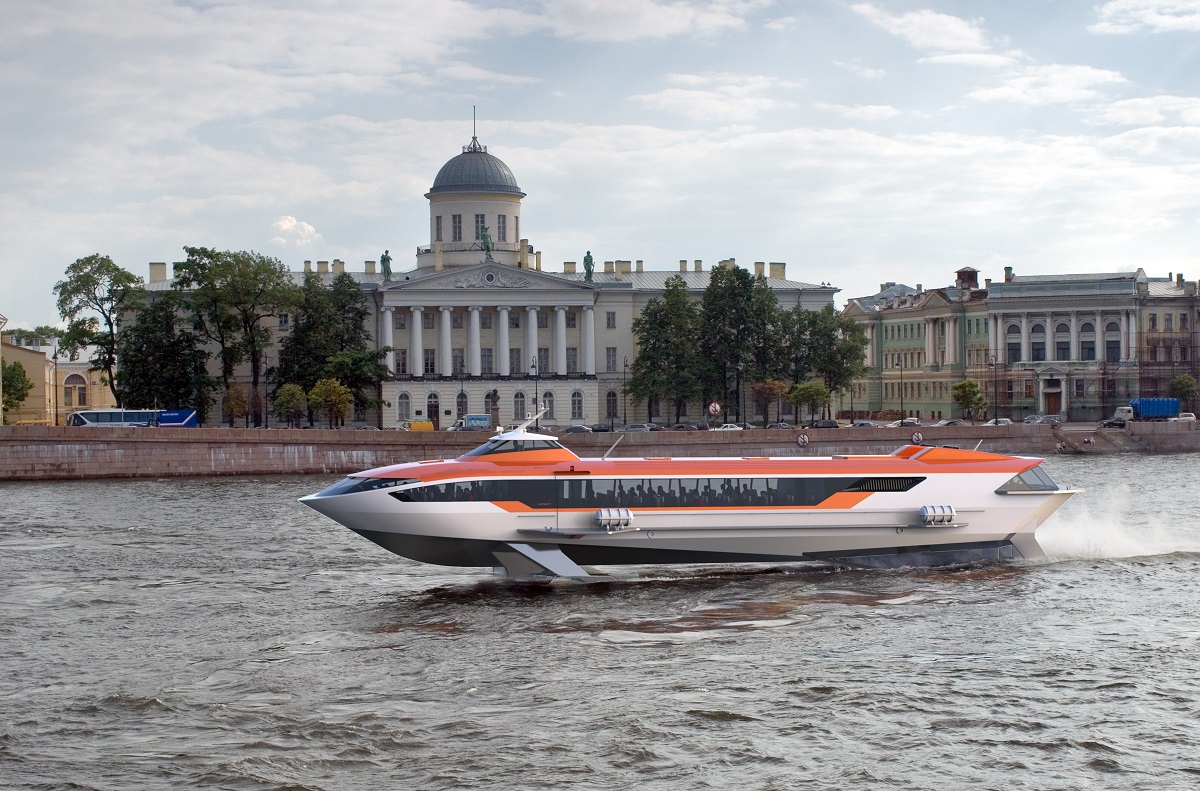

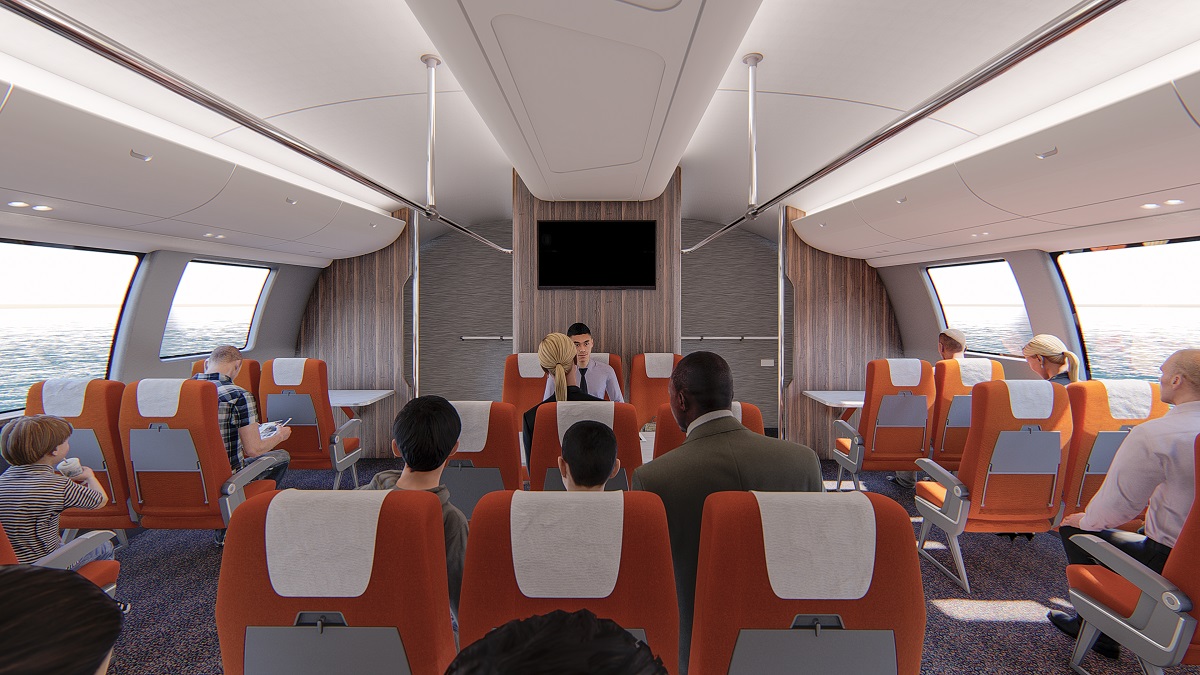

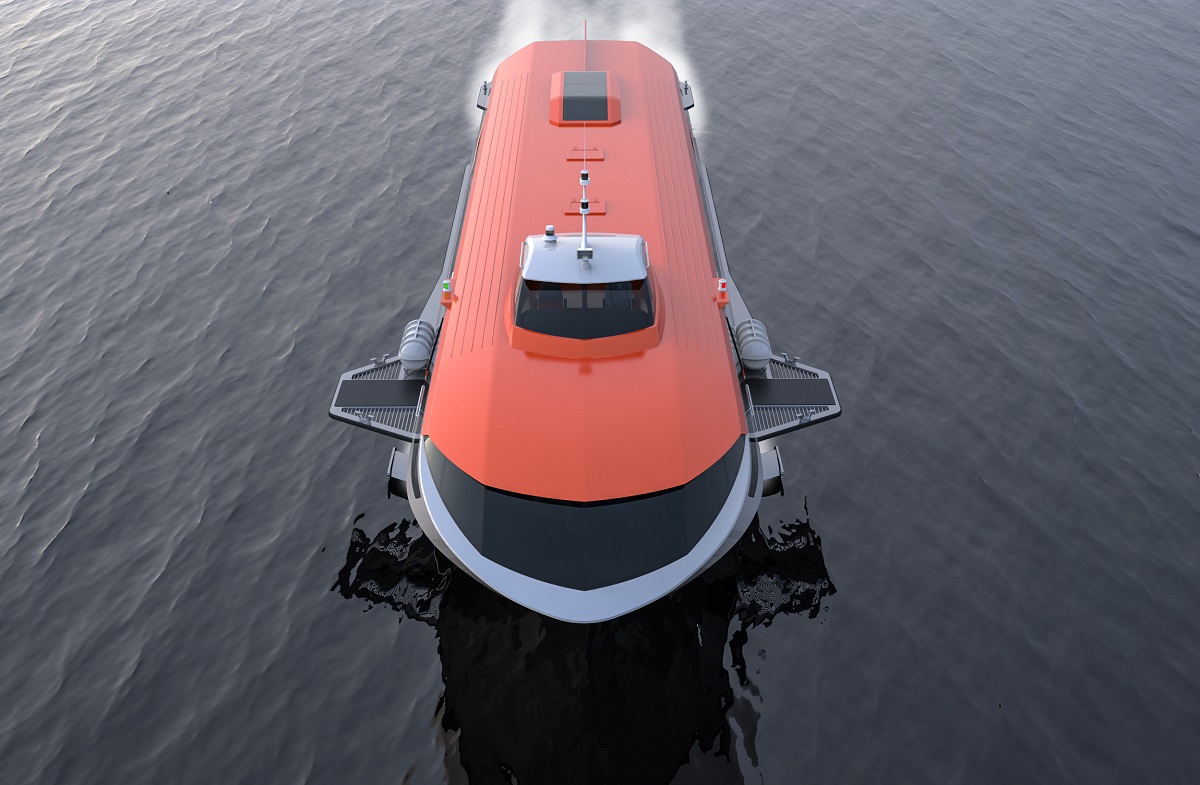

120 seats river hydrofoil Meteor-120

High-speed passenger transportation during daylight hours in comfortable saloons.

CLASSIFICATION

River Register

* 0 2.0/1.3 Hydrofoil craft passenger A

SEAKEEPING

Cruising in a foilborne mode is ensured at the wave height (hw3%) up to 1.3 m.

Safe motion in hullborne mode is ensured at the wave height (hw3%) up to 2.0 m.

MAIN ENGINES

Type 1: 2 x D2862LE483 (MAN, Germany)

Total power: 2 x 1066 kW

Average fuel consumption at operating speed: 183 l/h

Type 2: 2 x 12M26.3 (P2) (Baodouin, France)

Total power: 2x1030 kW

Average fuel consumption at operating speed: 177 l/h

Length, m 35.4

Beam, m 9.3

Depth at foilborne, m 9.0

Hullborne draft, m 2.3

Full displacement, t 65.0

Cruising speed, knots 65

Passengers Up to 120

Crew 6

Length, m 600

Beam, m 8

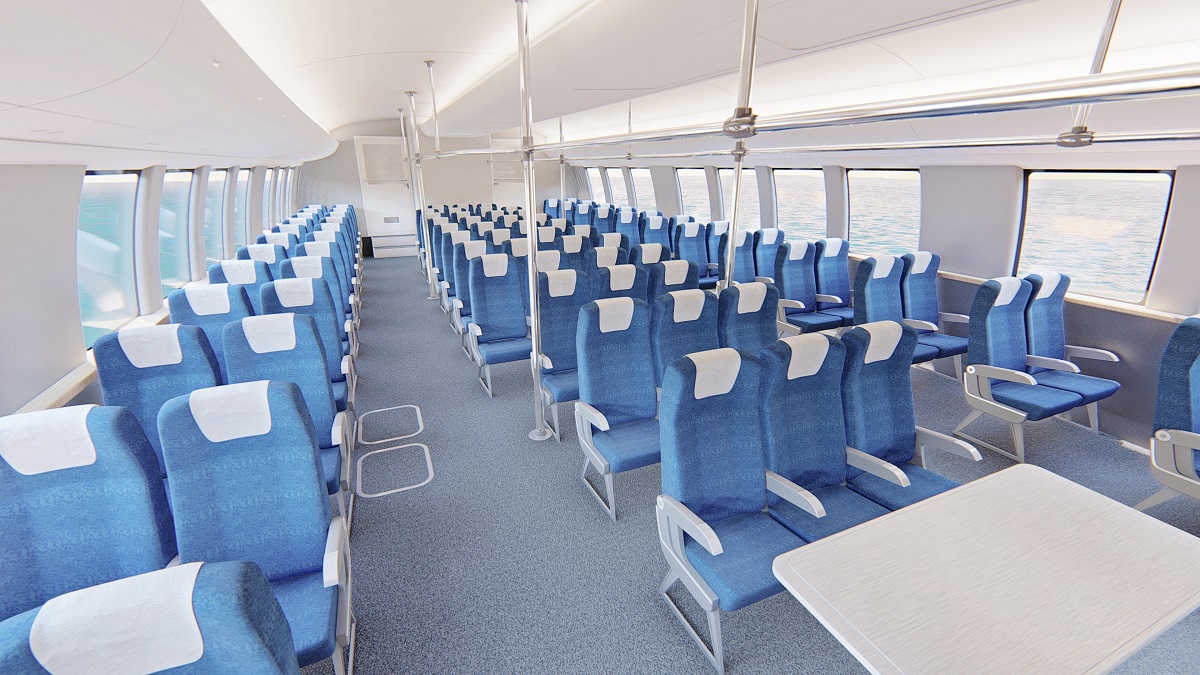

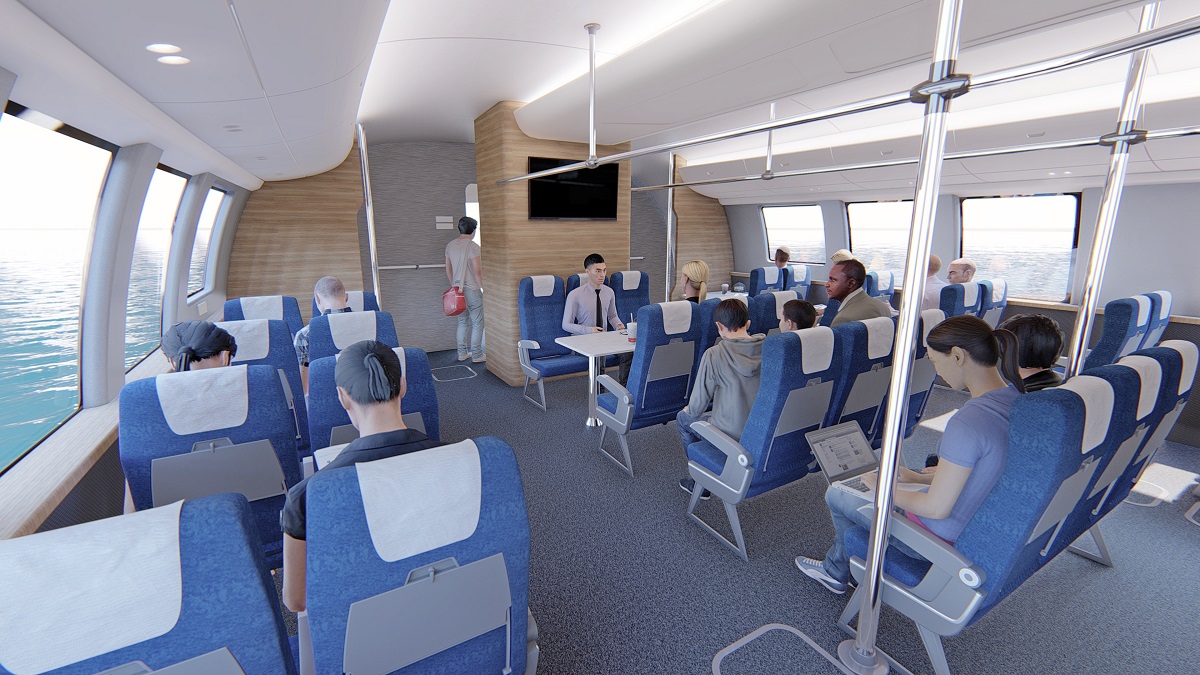

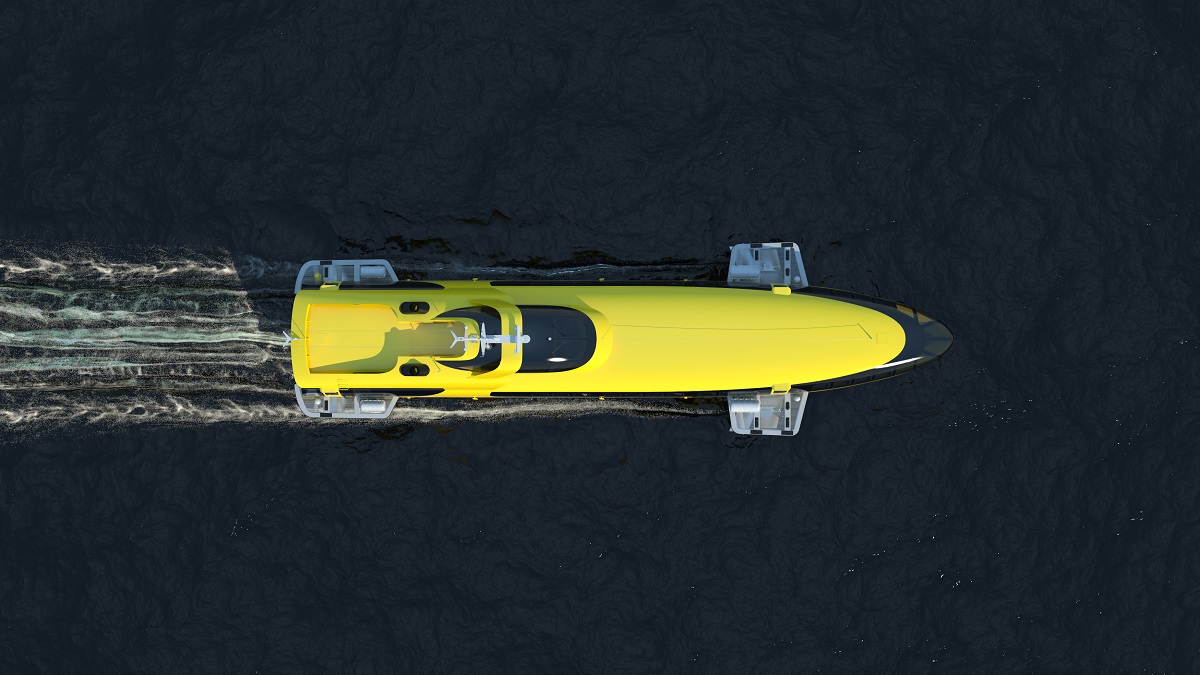

120 seats sea hydrofoil Cometa-120

High-speed passenger transportation during daylight hours using aircraft seats.

CLASSIFICATION

Maritime Register of Shipping

KM ★ [2] Hydrofoil craft passenger - A

SEAKEEPING

Cruising in a foilborne mode is ensured at the wave height (hw3%) up to 2.0 and wind force up to 4 points according to the Beaufort scale. Safe motion in hullborne mode is ensured at the wave height (hw3%) up to 2.5 m and win force of 5 points.

MAIN ENGINES

Type 1: 2x16V2000 M72 (MTU, Germany)

Total power: 2 x 1440 kW

Average fuel consumption at operating speed: 260 l/h

Type 2: 2 x D2862LE483 (MAN, Germany)

Total power: 2 x 1066 kW

Average fuel consumption at operating speed: 232 l/h

Length overall, m 35.2

Beam overall, m 10.3

Depth at foilborne, m 11.8

Hullborne draft, m 3.5

Full displacement, t 75.0

Cruising speed, knots 35

Passengers 120

Crew 5

Maximum range, miles 200

Cruising endurance, hours 8
