Models
463
Cabin

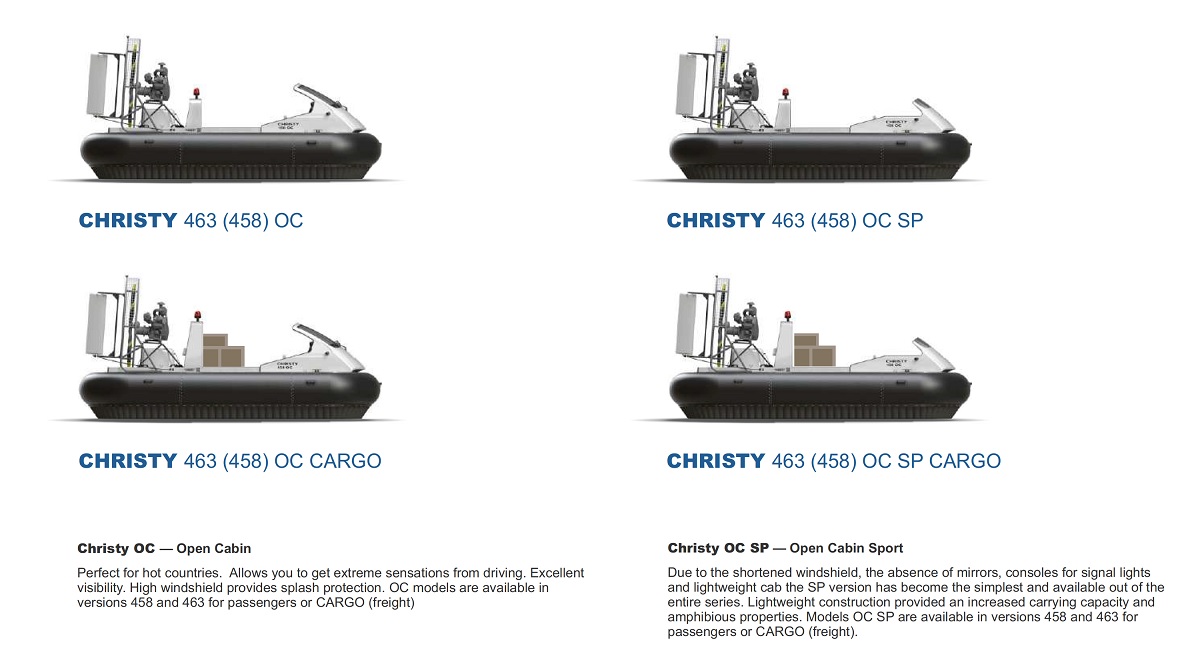

OC
Payload, kg
325
Pax
4
Dimensions not on the cushion (L.W.H.), mm
5150 × 2200 × 2300
Dimensions on the cushion, mm (L.W.H.)
5700 × 3100 × 2650
Dimensions inside the cabin, mm
2200 × 1550 × 1300
Weight, kg
400-450
Clearance, mm
400-450
Height overcome obstacles¸ mm
300-600
Wave, m
0,5
Wind, m/c
13 m / s with gusts up to 15 m / s
Cruising speed, km/h
40-50
Max speed, km/h
up to 90
Slope overcome from a standstiil/at fuul speed, deg
15/40
Engine(s) kW
Thurst
37
Lift
23
Type
Petrol
Fuel consumption, l/h
from 8 to 15
The main tank fuel capacity, l
40
Hull
The housing is completely made of composite materials. Individual elements in the form of sandwich panels made of fiberglass and polyurethane foam with an outer finishing layer to ensure 100% positive buoyancy. Not subject to corrosion and itching. Easy to repair.
Cushion
Bunk (upper tier - inflated balloon is tapered from front to back of the higher sections of the front for improved wave, the lower tier - independent segments). All segments are independent and easily replaced in the field.
The structure of the skirt
Balloon and the segments are made of nylon impregnated with urethane. The segments are attached to the balloon with polyamide bolts and nuts.
Buoyancy
Bottom based on sandwich panels of polyurethane foam and fiberglass provides 100% buoyancy. Even if the interior completely fill with water, ACV will remain afloat.
Traction system
Traction (marching) three-blade propeller aircraft - 1600mm in diameter made with composite, Lifting fan - 9-blade propeller axial diameter of 710 mm
Transmission
Factory-built gear reducer aircraft, made in Italy
Managing Exchange
With two vertical rudders
Pitch control
With two horizontal rudders fitted behind the fan ring
Navigation Devices
All vessels are equipped with a full range of electrical equipment. Provided a large number of options, including air conditioning, navigation equipment, multimedia equipment, rescue equipment, special equipment for hunting and fishing
Electrical
Engines equipped with: march - a powerful generator; Discharge - magdino
Bailing
Electric bilge pump, extra - hand pump
Firefighting
Portable carbon dioxide fire extinguisher
Navigation and communication
Prepared a place for the marine compass, GPS-navigator, card plotter and radio. FM-radio and CD-player.
Custom colors, Guard railing, Front side windows with small, sliding, ventilating windows, Light with remote control, Electric winch (synthetic rope)
